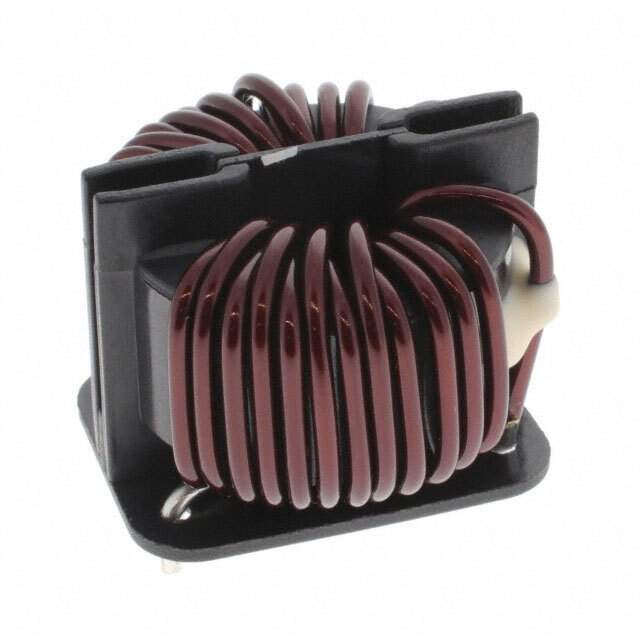

SCF33B-400-1R6C009JH Real Image
Same model may have multiple batches, images only for reference.

SCF33B-400-1R6C009JH

Part No SCF33B-400-1R6C009JH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCF
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 900 µH @ 100 kHz
Current Rating (Max) 40A
DC Resistance (DCR) (Max) 1.7mOhm
Voltage Rating - DC 500V
Voltage Rating - AC 500V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.969" Dia (50.00mm)
Height (Max) 1.378" (35.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SCF33B
Other Names UALF33B009JH00,399-SCF33B-400-1R6C009JH
Standard Package 36
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276912-SCF33B-400-1R6C009JH
Ultra Librarian 3D Model Ultra Librarian SCF33B-400-1R6C009JH CAD Model

Description

The SCF33B-400-1R6C009JH is a common mode choke manufactured by KEMET.

  • Voltage Rating: 500V AC and DC
  • Current Rating: 40A
  • Inductance: 900 µH @ 100 kHz
  • Filter Type: Power line
  • Height: 1.378" (35.00mm)
  • Mounting Type: Through-hole
  • Package: Horizontal, 4 PC Pin
  • Temperature Range: 25°C ~ 120°C
  • Dimension: 1.969" Dia (50.00mm)
