Same model may have multiple batches, images only for reference.

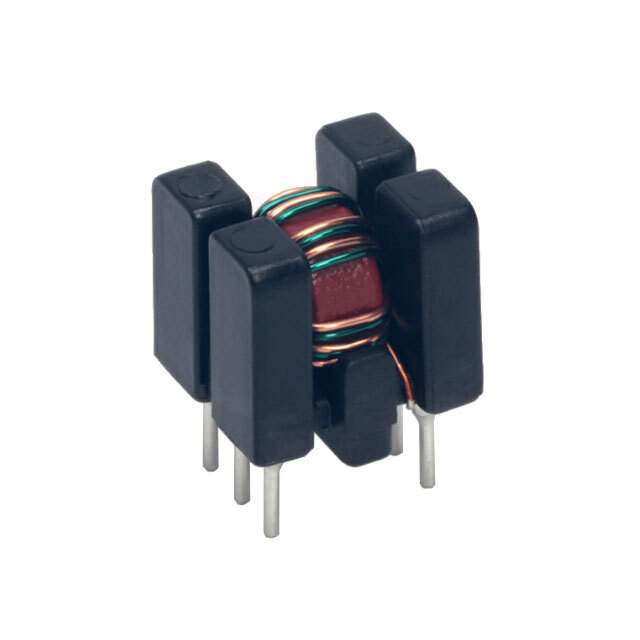

SH-321 Real Image
Same model may have multiple batches, images only for reference.

SH-321

Part No SH-321
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SH
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3.5 µH @ 100 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 14mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C ~ 80°C
Mounting Type Through Hole
Height (Max) 0.394" (10.00mm)
Package / Case Vertical, 4 PC Pin
Other Names UDLSH003210000,399-19666
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276854-SH-321
Ultra Librarian 3D Model Ultra Librarian SH-321 CAD Model

Description

The KEMET SH series SH-321 common mode choke is a filter product that can be used in various electronic applications.

  • Manufacturer:KEMET
  • Series: SH
  • Package: Bulk
  • Standard Package: 500
  • Filter Type: Power Line
  • Lines: 2
  • Voltage Rating (Max): 50V
  • Current Rating (Max): 3A
  • Mounting Type: Through-Hole
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range: -25 degrees Celsius to 80 degrees Celsius
