Same model may have multiple batches, images only for reference.

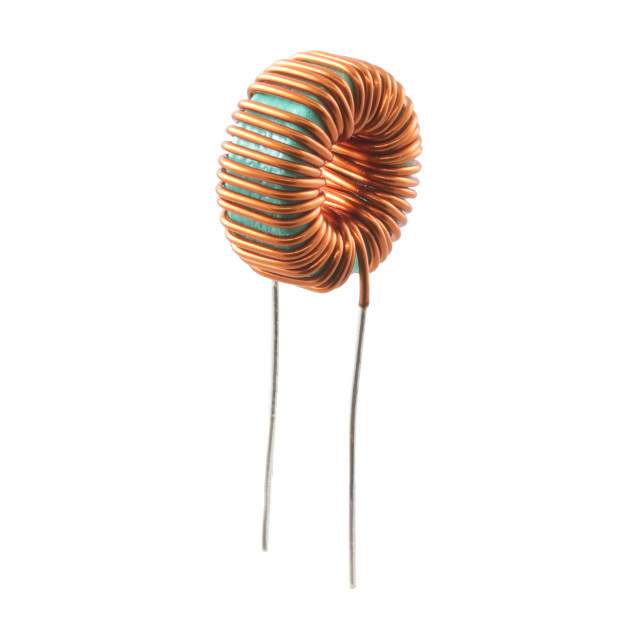

SN8S-400 Real Image
Same model may have multiple batches, images only for reference.

SN8S-400

Part No SN8S-400
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN8S-400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 46 µH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 52mOhm
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Height (Max) 0.689" (17.50mm)
Package / Case Vertical, No Base, 2 PC Pin
Base Product Number SN8S
Other Names 399-20551,UALSN8S4000000
Standard Package 2,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276842-SN8S-400
Ultra Librarian 3D Model Ultra Librarian SN8S-400 CAD Model

Description

The KEMET SN8S-400 is a common mode choke filter that is designed for power line filtering applications.

  • Current Rating: 2A
  • Inductance: 46μH @ 100 kHz
  • Filter Type: Power Line Filter
  • Package: Bulk
  • Mounting: Through-Hole
  • Height: 0.689 inches
  • Mounting: Through-Hole
  • DC Resistance: 52mOhm
  • Temperature Range: -25°C to 105°C
