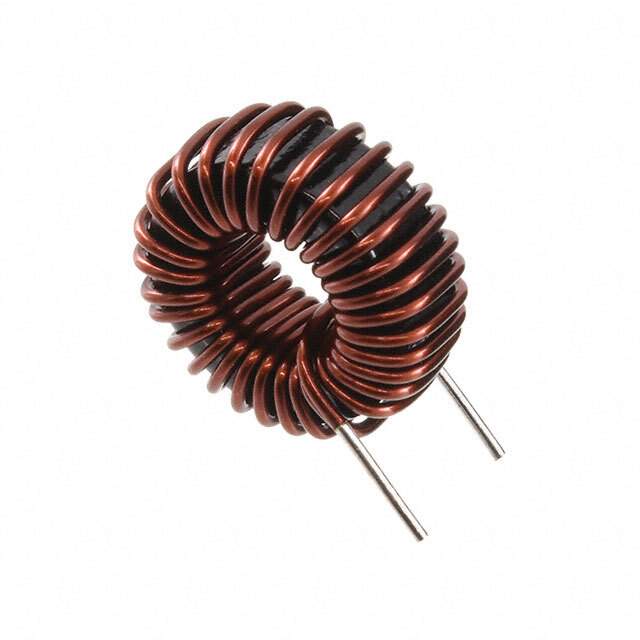

SNT-S20TF Real Image
Same model may have multiple batches, images only for reference.

SNT-S20TF

Part No SNT-S20TF
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SNT-S20TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SNT
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 6 µH @ 100 kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 35Ohm
Temperature Range - Operating -20°C ~ 60°C
Mounting Type Through Hole
Dimension 0.374" L x 0.197" W (9.50mm x 5.00mm)
Height (Max) 0.500" (12.70mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SNT-S
Other Names 399-SNT-S20TFTB,UDLSNT0S20TF00
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276809-SNT-S20TF
Ultra Librarian 3D Model Ultra Librarian SNT-S20TF CAD Model

Description

The KEMET SNT-S20TF is a common mode choke that is designed to suppress electromagnetic interference (EMI) in signal lines.

  • Current Rating: 1.5A
  • Inductance: 6μH @ 100kHz
  • DC Resistance: 35Ω
  • Mounting Applications: Through-hole
  • Package/Case: Vertical, 2 PC pin
  • Height: 0.500" (12.70mm)
