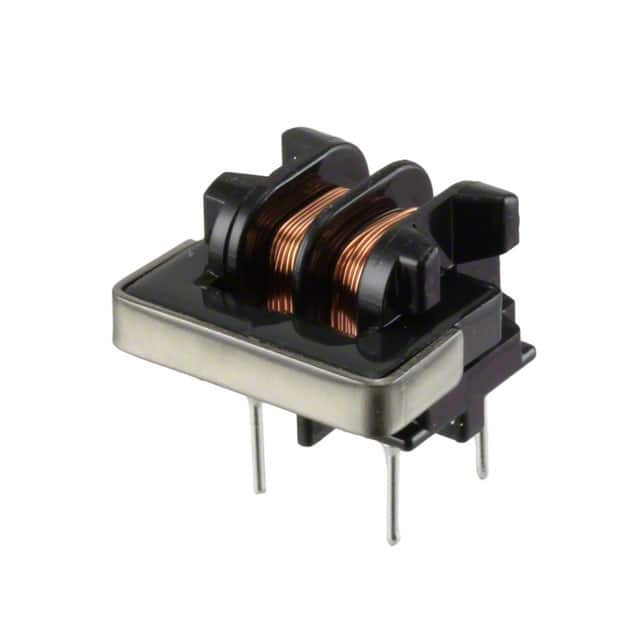

Same model may have multiple batches, images only for reference.
SU9H-07010 Kemet
Same model may have multiple batches, images only for reference.

SU9H-07010

Part No SU9H-07010
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 1 kHz
Current Rating (Max) 700mA
DC Resistance (DCR) (Max) 600mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.492" (12.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU9H
Other Names UALSU9H0701000,399-10706
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276501-SU9H-07010
Ultra Librarian 3D Model Ultra Librarian SU9H-07010 CAD Model

Description

The Kemet Common Mode Choke 1276501-SU9H-07010 is a power line filter that has a voltage rating of 250V AC and can handle a maximum current of 700mA.

  • Voltage Rating: 250V AC
  • Current Rating (Max): 700mA
  • Standard Package: 1,000
  • Height (Max): 0.492 inches
  • Width: 0.610 inches
  • Inductance @ Frequency: 1 mH @ 1 kHz
  • DC Resistance (DCR): 600mOhm
  • Mounting Type: Through Hole
  • Package / Case: Vertical, 4 PC Pin
  • Temperature Range - Operating: -25°C to 120°C
  • Dimension: 0.669 inches L x 0.610 inches W
