Same model may have multiple batches, images only for reference.

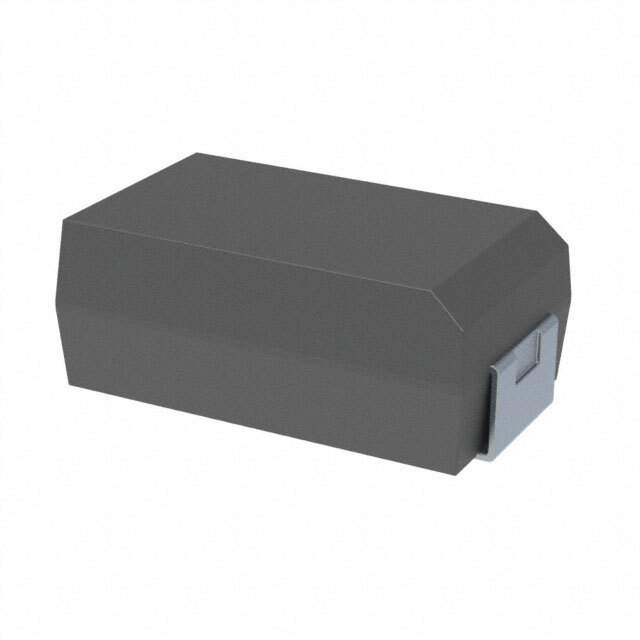

T520D337M006ATE018 Real Image
Same model may have multiple batches, images only for reference.

T520D337M006ATE018

Part No T520D337M006ATE018
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 330UF 6.3V 2917  /  330 µF Molded Tantalum Polymer Capacitor 6.3 V 2917 (7343 Metric) 18mOhm @ 100kHz
Datasheet
T520D337M006ATE018 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum - Polymer Capacitors
Mfr KEMET
Series KO-CAP® T520
Package Tape & Reel
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 6.3 V
Type Molded
ESR (Equivalent Series Resistance) 18mOhm @ 100kHz
Temperature Range - Operating -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Base Product Number T520D
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Other Names 399-5149-6,399-5149-2,399-5149-1
Standard Package 500
Win Source Part Number 1014644-T520D337M006ATE018
Ultra Librarian 3D Model Ultra Librarian T520D337M006ATE018 CAD Model

Description

The KEMET T520D337M006ATE018 tantalum polymer capacitor is designed for use in a variety of applications, including power supplies, lighting systems, and motor drives.

  • Capacitance: 330µF
  • Voltage Rating: 6.3V
  • Tolerance: ±20%
  • ESR: 18mOhm @ 100kHz
  • Package: 2917 (7343 Metric)
  • Mounting Type: Surface mountable
  • Operating Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Packaging: Tape and reel
  • Standard Package: 500
