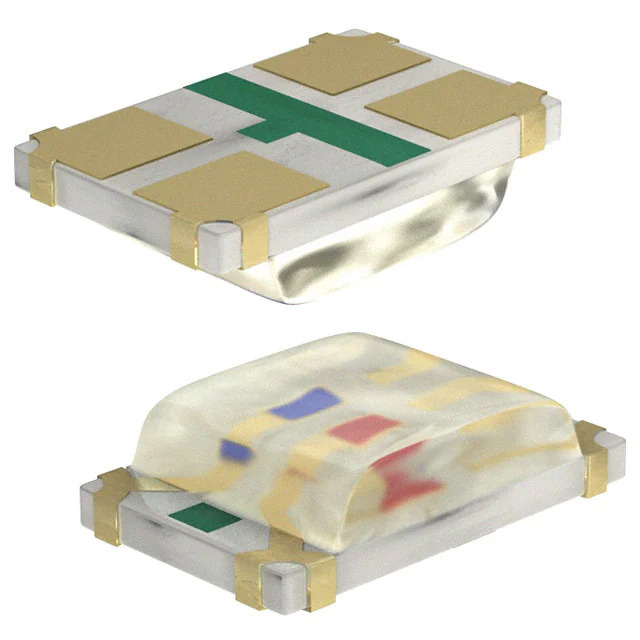

Same model may have multiple batches, images only for reference.

APHBM2012SURKZGC

Name: APHBM2012SURKZGC
Brand: Kingbright Corporation
SKU: 1377850
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	APHBM2012SURKZGC
Manufacturer	Kingbright Corporation
Catalog	LED Indication - Discrete
Description	LED GREEN/RED CLEAR CHIP SMD
Datasheet	APHBM2012SURKZGC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics - LED Indication - Discrete
Mfr	Kingbright
Series	-
Package	Tape & Reel
Product Status	Active
Color	Green, Red
Configuration	Independent
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	300mcd Green, 80mcd Red
Lens Style	Rectangle with Flat Top
Lens Size	1.30mm x 1.25mm
Voltage - Forward (Vf) (Typ)	3.3V Green, 1.95V Red
Current - Test	20mA Green, 20mA Red
Viewing Angle	120°
Mounting Type	Surface Mount
Wavelength - Dominant	525nm Green, 630nm Red
Wavelength - Peak	515nm Green, 650nm Red
Features	-
Package / Case	0805 (2012 Metric)
Supplier Device Package	Chip LED
Size / Dimension	2.00mm L x 1.25mm W
Height (Max)	0.45mm
Base Product Number	APHBM2012
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1377850-APHBM2012SURKZGC
Ultra Librarian 3D Model	Ultra Librarian APHBM2012SURKZGC CAD Model

Alternative Products

Description

The Kingbright APHBM2012SURKZGC is a surface mount LED indication device in the 0805 (2012 Metric) package from Kingbright.

Package / Case: 0805 (2012 Metric)
Color: Green, Red
Wavelength - Dominant: 525nm, 630nm
Wavelength - Peak: 515nm, 650nm
Millicandela Rating: 300mcd, 80mcd
Viewing Angle: 120°
Voltage - Forward (Vf) (Typ): 3.3V, 1.95V
Current - Test: 20mA
Mounting Type: Surface Mount
