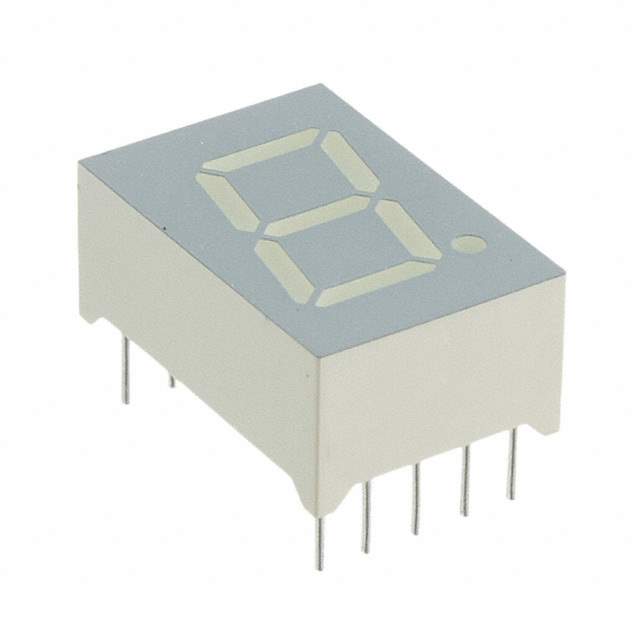

SA05-11SRWA Real Image
Same model may have multiple batches, images only for reference.

SA05-11SRWA

Part No SA05-11SRWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7-SEG 0.5" SGL RED 10DIP  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.85V 20mA 0.748" H x 0.500" W x 0.315" D (19.00mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)
Datasheet
SA05-11SRWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Product Status Obsolete
Number of Characters 1
Dimension 0.748" H x 0.500" W x 0.315" D (19.00mm x 12.70mm x 8.00mm)
Digit/Alpha Size 0.50" (12.70mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 1.85V
Current - Test 20mA
Millicandela Rating 34mcd
Wavelength - Peak 660nm
Power Dissipation (Max) 75mW
Package / Case 10-DIP (0.600", 15.24mm)
Base Product Number SA05-11
Other Names SA05-11SRWA,754-1677-5
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242568-SA05-11SRWA
Ultra Librarian 3D Model Ultra Librarian SA05-11SRWA CAD Model

Description

The SA05-11SRWA LED display module from Kingbright is a 7-segment, common anode, 1-digit display with a digit/alpha size of 0.50" (12.70mm) and a millicandela rating of 34mcd.

  • Peak Wavelength: 660nm
  • Voltage-Forward (Vf): 1.85V
  • Package: Tube (40 standard packages)
  • Status: Obsolete
  • Power Dissipation (max): 75mW
  • Dimension: 0.748" H x 0.500" W x 0.315" D (19.00mm x 12.70mm x 8.00mm)
