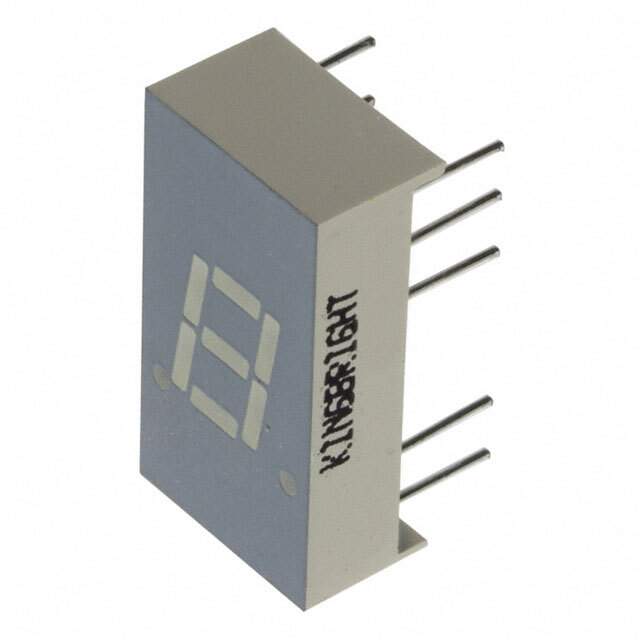

The SC03-12SRWA is a 7.62mm (0.3 inch) single-digit numeric display from Kingbright. It is a common cathode display featuring a super bright red color, making it suitable for applications where high visibility is essential. The display is designed for straightforward integration into electronic circuits and offers exceptional clarity.

Applications:

• Digital panel meters
• Test and measurement equipment
• Industrial control panels
• Consumer electronics (e.g., digital clocks, timers)
• Appliance displays

Features:

• 0.3 inch (7.62mm) digit height
• Single-digit display
• Common cathode configuration
• Super bright red color
• Low power consumption
• Excellent character appearance
• High light output

Benefits:

• Superior visibility, even in brightly lit environments
• Energy-efficient operation, ideal for portable devices
• Easy integration into existing circuits and systems
• Long lifespan, ensuring reliable performance over time
• Cost-effective solution for numeric display applications

Additional Details:

The SC03-12SRWA requires a specific forward voltage and current, as detailed in the Kingbright datasheet, for optimal brightness and longevity. It is imperative to use current-limiting resistors in series with the display to prevent damage to the internal LEDs. Detailed package dimensions and pinout information are available in the datasheet to facilitate design and assembly.
