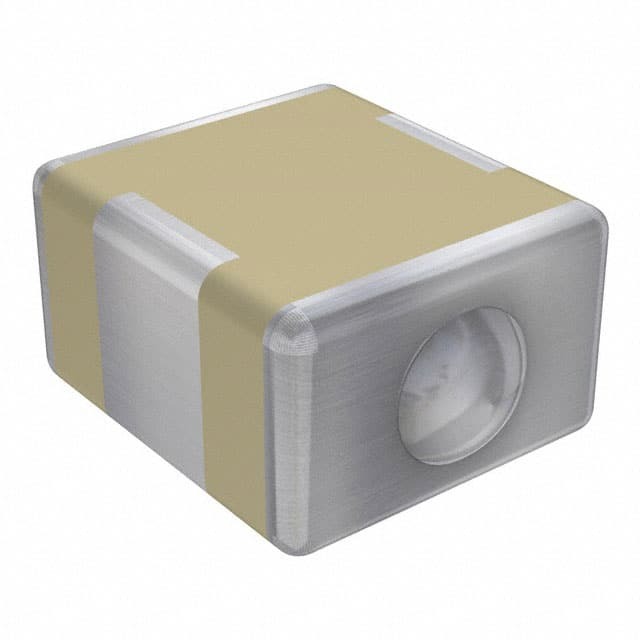

SBSMC0500474MXT Knowles Syfer
Same model may have multiple batches, images only for reference.

SBSMC0500474MXT

Part No SBSMC0500474MXT
Manufacturer Knowles Syfer
Catalog EMI/RFI Filters (LC, RC Networks)
Description SURFACE MOUNT C AND PI FILTER / EMI Filter 1st Order Low Pass 1 Channel C = 470nF 20 A 2220 (5750 Metric), 3 PC Pad
Datasheet
SBSMC0500474MXT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - EMI/RFI Filters (LC, RC Networks)
Mfr Knowles Syfer
Series SBSMC
Package Tape & Reel
Product Status Active
Type Low Pass
Filter Order 1st
Number of Channels 1
Attenuation Value 43dB @ 100MHz
Current 20 A
Values C = 470nF
ESD Protection No
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Voltage - Rated 50V
Mounting Type Surface Mount
Package / Case 2220 (5750 Metric), 3 PC Pad
Size / Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height 0.133" (3.38mm)
Base Product Number SBSMC
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1126378-SBSMC0500474MXT
Ultra Librarian 3D Model Ultra Librarian SBSMC0500474MXT CAD Model

Description

The 1126378-SBSMC0500474MXT is an EMI/RFI filter from Knowles Syfer.

  • Filter Type: Low Pass
  • Rated Voltage: 50V
  • Mounting Type: Surface Mount
  • Package: 2220 (5750 Metric)
  • Size: 0.224" L x 0.197" W (5.70mm x 5.00mm)
  • Height: 0.133" (3.38mm)
  • Current Rating: 20 A
  • Attenuation: 43dB @ 100MHz
  • Filter Order: 1st Order
  • Capacitance: 470nF
  • Temperature Range: -55°C to 125°C
  • Standard Package: 500 pcs
  • REACH: REACH unaffected
