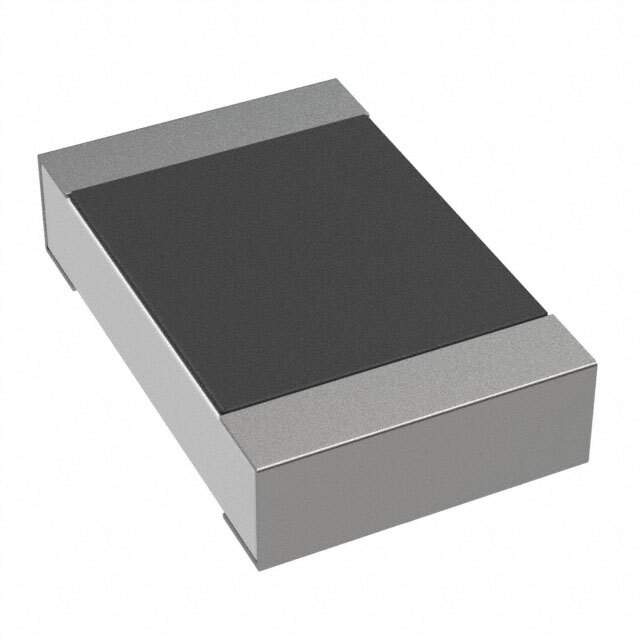

Same model may have multiple batches, images only for reference.

RK73B2ATTD471J

Name: RK73B2ATTD471J
Brand: KOA Speer
SKU: 1328623
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RK73B2ATTD471J
Manufacturer	KOA Speer
Catalog	Chip Resistor - Surface Mount
Description	RES 470 OHM 5% 1/4W 0805 / 470 Ohms ±5% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200 Thick Film
Datasheet	RK73B2ATTD471J Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Manufacturer	KOA Speer Electronics, Inc.
Packaging	Reel - TR
Resistance	470 Ohms
Tolerance	±5%
Power (Watts)	0.25W, 1/4W
Composition	Thick Film
Features	Automotive AEC-Q200
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Case / Package	0805 (2012 Metric)
Supplier Device Package	0805
Ratings	AEC-Q200
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.024" (0.60mm)
Number of Terminations	2
Base Product Number	RK73B2A
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0030
Other Part Number	2019-RK73B2ATTD471JCT,2019-RK73B2ATTD471JTR,2019-RK73B2ATTD471JDKR
Standard Package	5,000
Win Source Part Number	1328623-RK73B2ATTD471J
Ultra Librarian 3D Model	Ultra Librarian RK73B2ATTD471J CAD Model

Alternative Products

Description

The KOA Speer Electronics RK73B2ATTD471J is a thick film chip resistor that is surface mountable.

Resistance: 470 Ohms
Power Rating: 0.25W
Package: 0805
Tolerance: ±5%
Temperature Coefficient: ±200ppm/°C
AEC-Q200 Ratings: True
Application: Automotive
Packaging: Reel - TR
Standard Packages: 5,000
Dimensions: 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height: 0.024" (0.60mm)
Supplier Device Package: 0805 (2012 Metric)
Operating Temperature Range: -55°C ~ 155°C
ROHS3 Compliant: True
ECCN: EAR99
