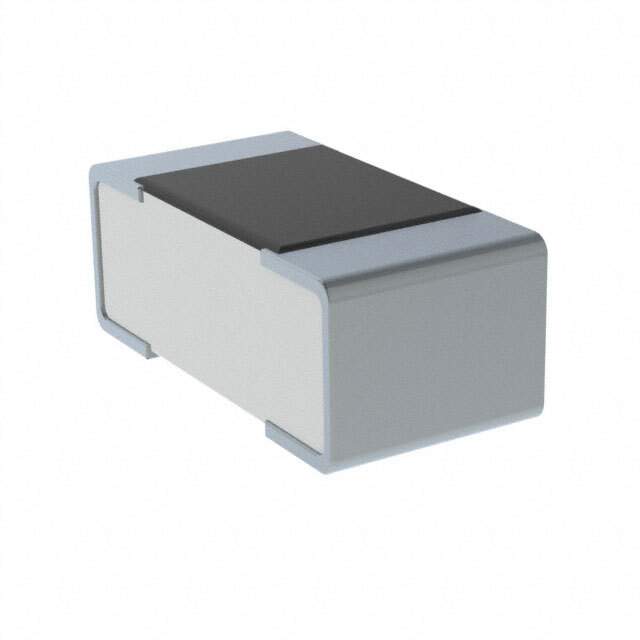

RN732ATTD5491B25 Real Image
Same model may have multiple batches, images only for reference.

RN732ATTD5491B25

Part No RN732ATTD5491B25
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 5.49K OHM 0.1% 1/10W 0805  /  5.49 kOhms ±0.1% 0.1W, 1/10W Chip Resistor 0805 (2012 Metric) Moisture Resistant Thin Film
Datasheet
RN732ATTD5491B25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr KOA Speer Electronics, Inc.
Series RN73
Package Tape & Reel (TR)
Product Status Last Time Buy
Resistance 5.49 kOhms
Tolerance ±0.1%
Power (Watts) 0.1W, 1/10W
Composition Thin Film
Features Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Base Product Number RN732A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2019-RN732ATTD5491B25TR
Standard Package 5,000
Win Source Part Number 1088786-RN732ATTD5491B25
Ultra Librarian 3D Model Ultra Librarian RN732ATTD5491B25 CAD Model

Description

The RN732ATTD5491B25 is a chip resistor surface-mount product from KOA Speer.

  • Series: RN73
  • Package: 0805 (2012 metric)
  • Packaging: Tape and Reel (TR)
  • Standard Package: 5,000
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power Rating: 0.1W or 1/10W
  • Resistance: 5.49 kOhms
  • Moisture-Resistant: Yes
  • Height: 0.024" (0.60mm)
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
