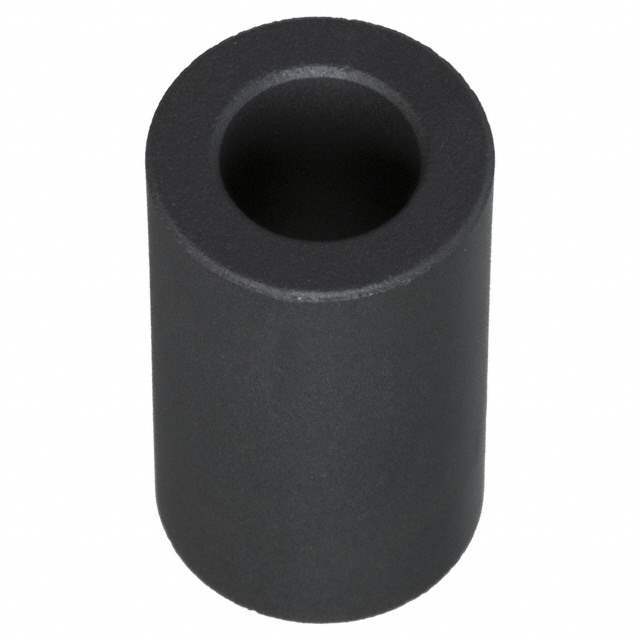

Same model may have multiple batches, images only for reference.

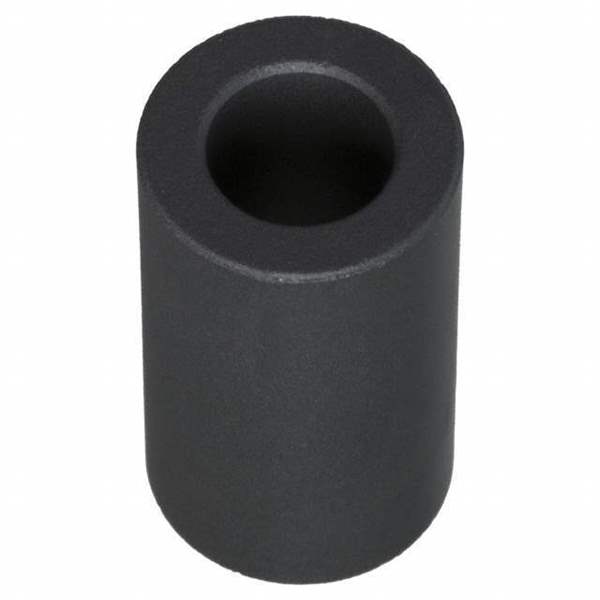

28B0631-100 Laird-Signal Integrity Products
Same model may have multiple batches, images only for reference.

28B0631-100

Part No 28B0631-100
Manufacturer Laird-Signal Integrity Products
Catalog Cable Ferrites
Description FERRITE CORE 243 OHM SOLID
Datasheet
28B0631-100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206302-28B0631-100
Manufacturer Laird-Signal Integrity Products
Category Filters-Cable Ferrites
Series 28
Package Tray
Product Status Active
Type Round
Design Solid
Impedance @ Frequency 243Ohm @ 100MHz
Inner Dimension 0.364" Dia (9.25mm)
Outer Dimension 0.630" Dia (16.00mm)
Ultra Librarian 3D Model Ultra Librarian 28B0631-100 CAD Model

Description

For retrofit and post-assembly operations, a selection of high frequency EMI “split” cores are offered. Similar in performance to one-piece cylindrical core designs, these split ferrite cores provide excellent common and differential mode high frequency EMI suppression on round cable and wire assemblies. Black plastic snap-on cases provide secure closure of the split cores onto the cable or wire bundle.
