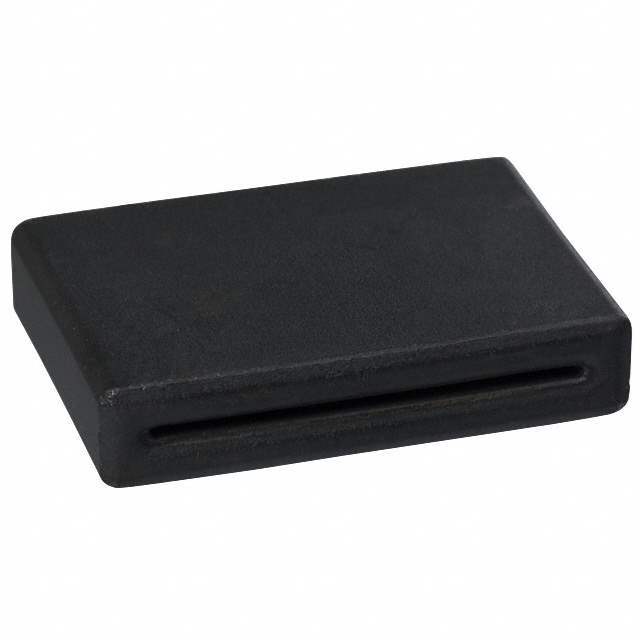

28R1102-100 Laird-Signal Integrity Products
Same model may have multiple batches, images only for reference.

28R1102-100

Part No 28R1102-100
Manufacturer Laird-Signal Integrity Products
Catalog Cable Ferrites
Description FERRITE CORE 192 OHM SOLID
Datasheet
28R1102-100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206147-28R1102-100
Manufacturer Laird-Signal Integrity Products
Category Filters-Cable Ferrites
Series 28R
Package Tray
Product Status Active
Type Flat
Design Solid
Impedance @ Frequency 192Ohm @ 100MHz
Inner Dimension 0.906" W x 0.031" H (23.00mm x 0.80mm)
Outer Dimension 1.102" W x 0.228" H (28.00mm x 5.80mm)
Ultra Librarian 3D Model Ultra Librarian 28R1102-100 CAD Model

Description

For retrofit and post-assembly operations, a selection of high frequency EMI “split” cores are offered. Similar in performance to one-piece cylindrical core designs, these split ferrite cores provide excellent common and differential mode high frequency EMI suppression on round cable and wire assemblies. Black plastic snap-on cases provide secure closure of the split cores onto the cable or wire bundle.
