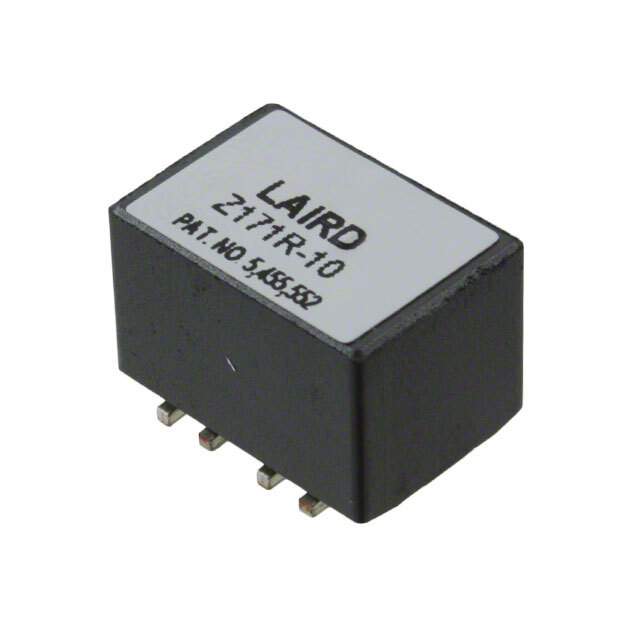

CM5740Z171R-10 Real Image
Same model may have multiple batches, images only for reference.

CM5740Z171R-10

Part No CM5740Z171R-10
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 20A 4LN 170 OHM SMD / Common Mode Chokes Quad 170Ohm 100MHz 20A 0.001Ohm DCR SMD T/R
Datasheet
CM5740Z171R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Series CM
Packaging Reel package
Filter Type Power Line
Number of Lines 4
Impedance @ Frequency 170 Ohm @ 100MHz
Current Rating (Maximum) 20A
DC Resistance (DCR) (Maximum) 1 mOhm
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Dimension 0.570" L x 0.435" W (14.48mm x 11.05mm)
Height (Maximum) 0.413" (10.49mm)
Package Vertical, 8 Flat Lead
Win Source Part Number 771622-CM5740Z171R-10
Popularity Medium
Supply and Demand Status Limited
Family Name CM
Introduction Date April 07, 2006
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian CM5740Z171R-10 CAD Model

Description

The Laird-Signal Integrity Products CM5740Z171R-10 is a power line filter that has a filter type of power line and 4 lines.

  • Filter Type: Power line, 4 lines
  • Impedance: 170 Ohm @ 100MHz
  • Current Rating: 20A
  • Mounting: Surface Mount
  • Package: Vertical, 8 flat lead
  • Operating Temperature: -40°C to 125°C
  • DC Resistance (DCR): 1 mOhm
  • Series: CM
  • Estimated EOL Date: 2023
