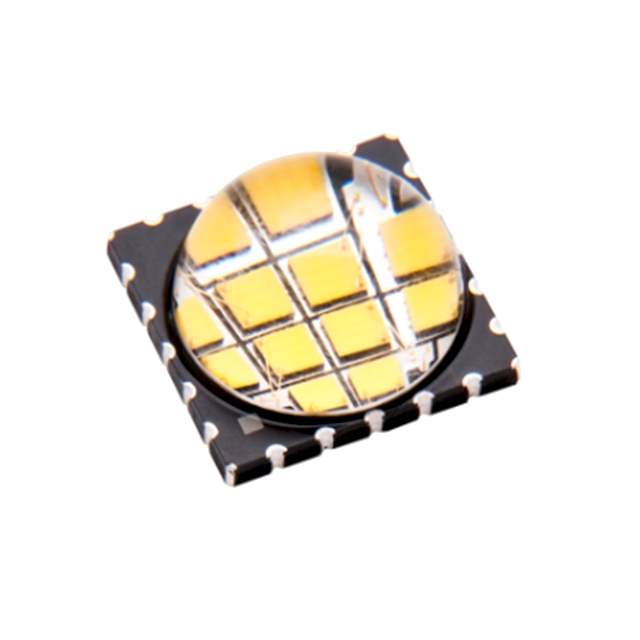

LZC-00WW00-0030 Real Image
Same model may have multiple batches, images only for reference.

LZC-00WW00-0030

Part No LZC-00WW00-0030
Manufacturer LED Engin Inc.
Catalog LED Lighting - White
Description LED WARM WHITE 3000K 85CRI 24SMD
Datasheet
LZC-00WW00-0030 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer LED Engin Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Color White, Warm
CCT (K) 3000K
Flux @ 25°C, Current - Test 1221 lm (1085 lm to 1357 lm)
Current - Test 700mA
Forward Voltage 42V
Lumens/Watt @ Current - Test 42 lm/W
CRI (Color Rendering Index) 85 (Typ)
Current - Max 1.2A
Viewing Angle 110°
Mounting SMD (SMT)
Case / Package SMD
Height - Seated (Max) 0.220" (5.60mm)
Thermal Resistance of Package 0.7°C/W
Win Source Part Number 143397-LZC-00WW00-0030
Ultra Librarian 3D Model Ultra Librarian LZC-00WW00-0030 CAD Model

Description

The 143397-LZC-00WW00-0030 is an electronic component manufactured by LED Engin Inc.. It is an SMD (SMT) mounted component with a height of 0.220" (5.60mm). It has a viewing angle of 110° and a CCT of 3000K. This component has a low popularity and is obsolete (EOL). It can be used in various optoelectronic applications that require high-quality performance.
