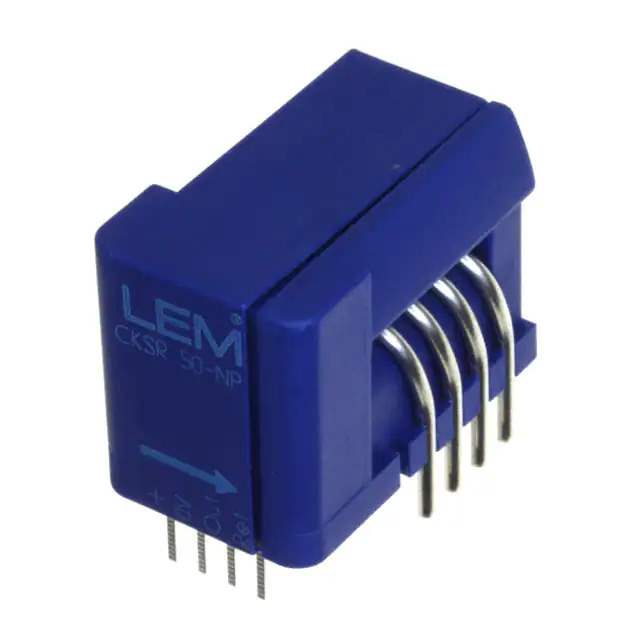

CKSR 50-NP Real Image CKSR 50-NP Real Image1 CKSR 50-NP Real Image2
Same model may have multiple batches, images only for reference.
CKSR 50-NP Real Image CKSR 50-NP Real Image1 CKSR 50-NP Real Image2
CKSR 50-NP Real Image CKSR 50-NP Real Image1 CKSR 50-NP Real Image2
Same model may have multiple batches, images only for reference.

CKSR 50-NP

Part No CKSR 50-NP
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT FLUX 50A AC/DC
Datasheet
CKSR 50-NP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr LEM USA Inc.
Series CKSR
Package Tray
Product Status Active
For Measuring AC/DC
Sensor Type Flux Gate, Closed Loop
Current - Sensing 50A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 12.5mV/A
Frequency 300kHz
Linearity ±1%
Accuracy ±0.8%
Voltage - Supply 4.75 ~ 5.25V
Response Time 0.3µs
Current - Supply (Max) 20mA
Temperature Range - Operating -40°C ~ 105°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
Standard Package 50 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Win Source Part Number 845120-CKSR 50-NP
Ultra Librarian 3D Model Ultra Librarian CKSR 50-NP CAD Model

Description

The CKSR 50-NP is an active current sensor from LEM USA Inc.

  • Series: CKSR
  • Sensor Type: Flux Gate, Closed-Loop
  • Response Time: 0.3µs
  • Frequency: 300kHz
  • Polarization: Bidirectional
  • Measurement: AC/DC
  • Current (Max): 50A
  • Voltage Supply: 4.75 ~ 5.25V
  • Sensitivity: 12.5mV/A
  • Package: Module
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 105°C
