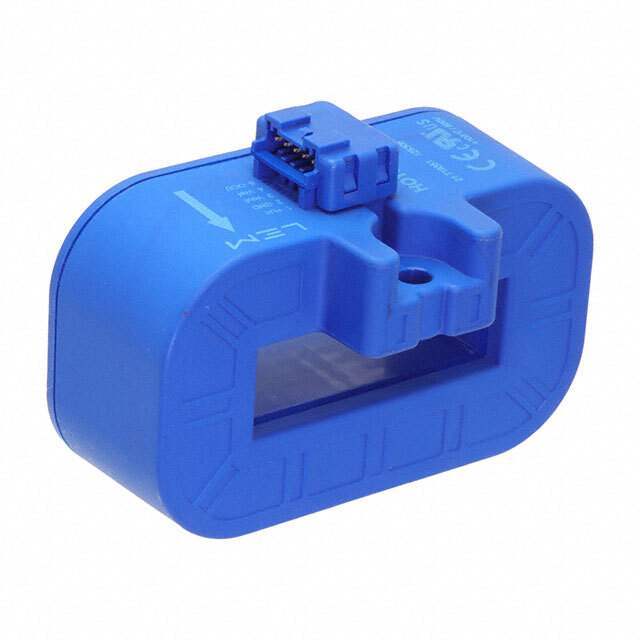

HOYL 800-S-0100 LEM USA Inc.
Same model may have multiple batches, images only for reference.

HOYL 800-S-0100

Part No HOYL 800-S-0100
Manufacturer LEM USA Inc.
Catalog Current Sensors
Description 800A 5V OL BUS BAR MOUNT
Datasheet
HOYL 800-S-0100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309395-HOYL 800-S-0100
Category Sensors, Transducers >Current Sensors
Mfr LEM USA Inc.
Packaging Bulk
Part Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 800A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 1mV/A
Ultra Librarian 3D Model Ultra Librarian HOYL 800-S-0100 CAD Model

Description

  • Open loop multi-range current transducer
  • Voltage output
  • Single supply +5 V
  • Overcurrent detection 2.93 × IP N (peak value)
  • Galvanic separation between primary and secondary circuit
  • Low power consumption
  • For busbar mounting
  • Aperture: 40 × 13 mm
  • Factory calibrated
  • Mating JST connector:
    housing PAP-05V-S
    contact SPHD-00xT-P0.5.
