LT1584IT-3.3#PBF - Low Dropout Fast Response Positive Regulator from Linear Technology

The LT1584IT-3.3#PBF is a robust low dropout (LDO) positive voltage regulator designed by Linear Technology, now part of Analog Devices, to deliver a fixed output of 3.3V with a high current capacity of up to 5A. This high-performance component is engineered to maintain a consistent and reliable voltage supply for a variety of applications, including but not limited to, microprocessor systems, peripherals, and power management systems.

Featuring a fast transient response and very low dropout voltage, this regulator is particularly well-suited for applications that demand a stable voltage supply with rapid load changes. The device operates with a dropout voltage as low as 1.5V at maximum output current, which makes it an excellent choice for systems where efficiency is paramount, and the available input voltage is relatively close to the output voltage.

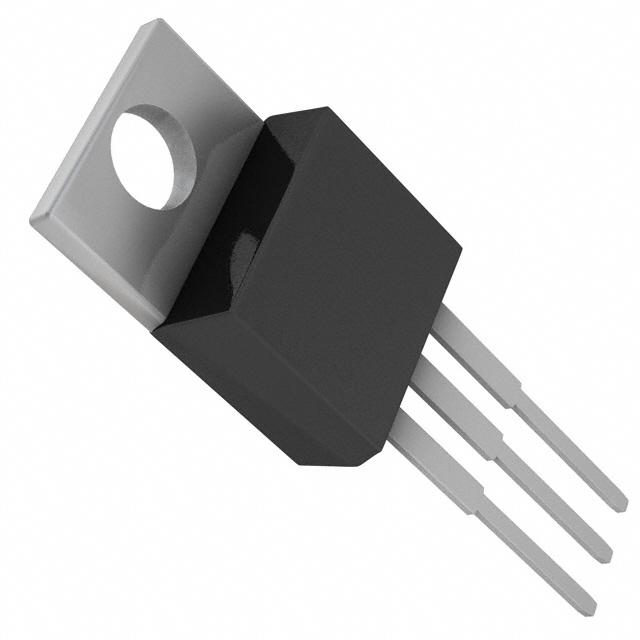

One of the key attributes of the LT1584IT-3.3#PBF is its thermal performance. Housed in a TO-220 package, it is designed to handle high current loads while maintaining a low operating temperature. The inclusion of thermal shutdown and current limit protection features ensures that the device remains safe under excessive load or temperature conditions, enhancing the reliability of the overall system.

For noise-sensitive applications, the LT1584IT-3.3#PBF excels with its low output noise characteristics, which can be further reduced with the addition of an optional external bypass capacitor. This flexibility allows designers to optimize the regulator for their specific noise requirements without compromising performance.

Installation and integration of the LT1584IT-3.3#PBF are straightforward, thanks to its industry-standard 3-pin TO-220 package. This makes it a drop-in replacement for many existing designs, simplifying the upgrade process for enhanced power management.

In summary, the LT1584IT-3.3#PBF by Linear Technology is a high-quality, reliable voltage regulator that offers a blend of performance, flexibility, and ease of use for engineers looking to stabilize their power supply in a wide range of electronic applications.
