The LT1814CS#TRPBF is a high-performance, low-power dual operational amplifier (op-amp) developed by Linear Technology, now part of Analog Devices. This precision analog component is designed to offer a balance of speed and power efficiency, making it a suitable choice for a wide range of applications, including battery-powered devices, communications equipment, and portable medical devices.

Key Features

• High Speed: The LT1814CS#TRPBF boasts a fast slew rate and high gain-bandwidth product, enabling it to handle fast signal transitions and high-frequency applications with ease.
• Low Power Consumption: Optimized for low-voltage operation, this op-amp draws minimal current, which is crucial for extending battery life in portable devices.
• Rail-to-Rail Output: The device can swing its output voltage from the negative supply rail to the positive rail, maximizing the dynamic range in single-supply applications.
• Single or Dual Supply Operation: It is versatile in power supply requirements, capable of operating from a single 2.7V to 6V supply or dual supplies ranging from ±1.35V to ±3V, adding to its flexibility in circuit design.

Applications

The LT1814CS#TRPBF is particularly well-suited for applications that require precision and efficiency, such as:

• Active filters
• ADC/DAC buffers
• Portable and battery-powered equipment
• Data acquisition systems
• Communications systems

Quality and Reliability

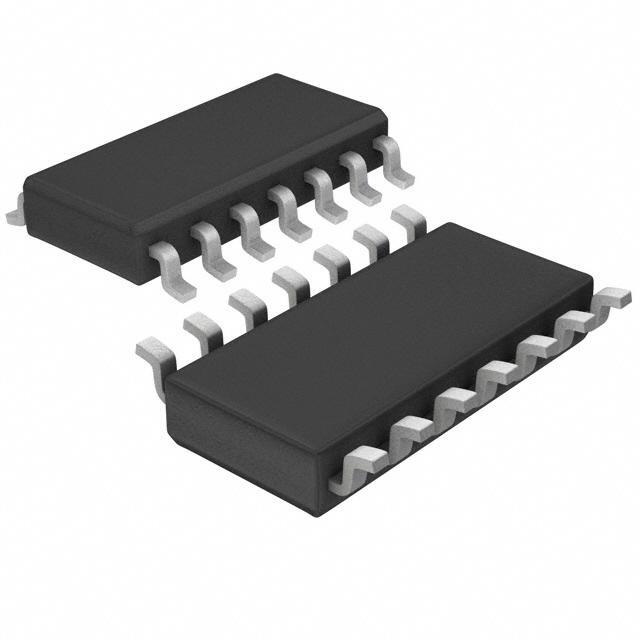

Linear Technology is known for its commitment to quality, and the LT1814CS#TRPBF is no exception. It is designed to meet stringent industrial standards for reliability and performance. The product is available in a 16-lead narrow SOIC package, which is RoHS compliant and suitable for automated assembly processes.

Ordering Information

The part number LT1814CS#TRPBF indicates the device is provided in tape and reel packaging, which facilitates efficient handling and placement during mass production. For additional information or to place an order, customers are encouraged to contact an authorized distributor or visit Linear Technology's official website.
