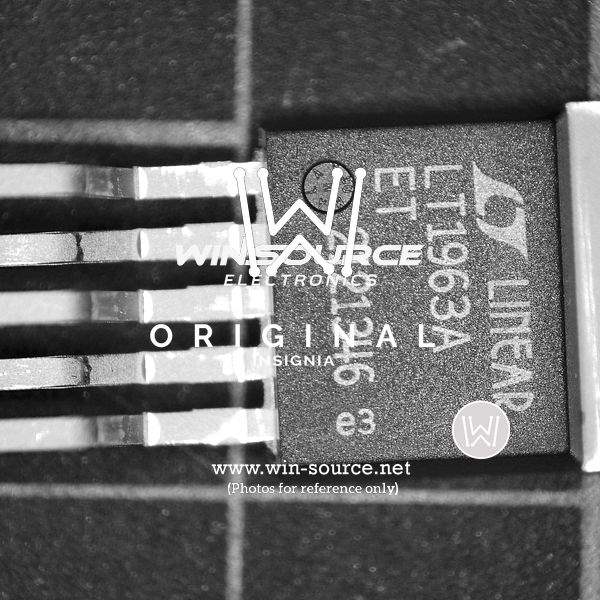

LT1963AET#PBF

Part No LT1963AET#PBF
Manufacturer Linear Technology
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 1.5A TO220-5
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Tube/Rail
Status Active
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 20V
Nominal Output Voltage (Min/Fixed) 1.21V
Maximum Output Voltage 20V
Dropout Voltage-Max 0.55V @ 1.5A
Output Current 1.5A
Operating Supply Current 1.5mA to 120mA
PSRR 63dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 1.21 V to 20 V
Voltage - Dropout (Typical) 0.34V @ 1.5A
Mounting Through Hole

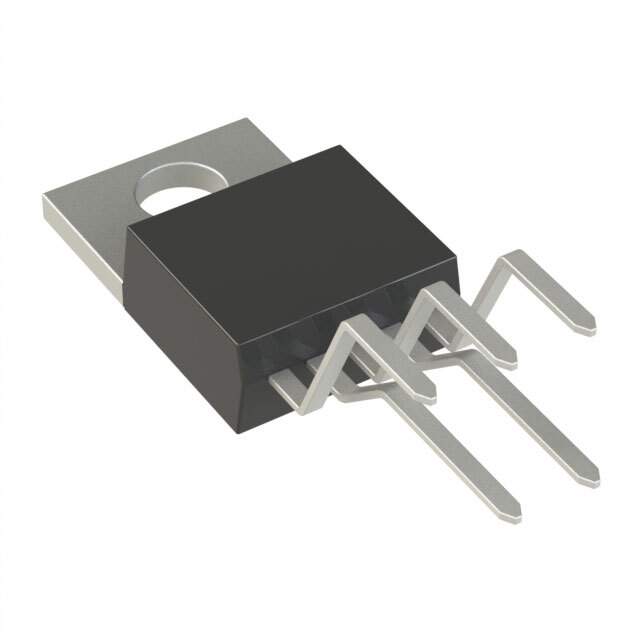

Case / Package TO-220-5
Win Source Part Number 020365-LT1963AET#PBF
Ultra Librarian 3D Model Ultra Librarian LT1963AET#PBF CAD Model

Description

LT1963AET#PBF - Low Noise, Fast Transient Response LDO Regulator

The LT1963AET#PBF is a high-performance low dropout linear regulator (LDO) from Linear Technology, designed to provide optimal power management solutions for a wide range of applications. This state-of-the-art LDO offers a low noise operation and fast transient response, making it an ideal choice for sensitive RF and analog circuitry that requires a clean and stable power supply.

Featuring a dropout voltage of just 340mV at a 1.5A output, the LT1963AET#PBF ensures efficient operation even at low input-to-output voltage differentials. This characteristic is particularly beneficial in battery-operated devices where maximizing the usable range of the battery voltage is crucial. The device is capable of delivering an adjustable output from 1.21V to 20V, which can be set by external resistors, providing flexibility for a variety of design requirements.

The LT1963AET#PBF is designed with an advanced internal circuitry that minimizes the output noise to a remarkably low 40µVRMS over a 10Hz to 100kHz bandwidth. Such low noise performance makes this regulator an excellent choice for high-end audio, precision data acquisition systems, and other noise-sensitive applications.

Additionally, the LT1963AET#PBF boasts a fast transient response, which is a critical feature for applications where the load conditions change rapidly, such as microprocessors, FPGAs, and DSPs. This quick response helps maintain a stable output voltage despite sudden changes in load, thereby protecting sensitive components and ensuring reliable operation.

The regulator comes in a robust TO-220 package, offering excellent thermal performance and ease of use in various applications. It also includes several protective features such as overcurrent and overtemperature protection, ensuring the longevity and reliability of both the regulator and the system it powers.

With its combination of low noise, fast transient response, and high output voltage accuracy, the LT1963AET#PBF from Linear Technology is an excellent choice for designers looking to enhance the performance and reliability of their power management systems.
