The LT3015EMSE#PBF is a robust, high-performance negative low dropout voltage linear regulator designed by Linear Technology, now part of Analog Devices. This device is engineered to provide precision voltage regulation while maintaining a low dropout voltage and low ground current over a wide range of output currents. It is an ideal choice for high-accuracy, high-reliability applications that require a stable and clean negative voltage supply.

Key Features

• Output Voltage Range: The LT3015EMSE#PBF offers a wide output voltage range from -1.22V to -30V, which can be set with a single external resistor.
• Low Dropout Voltage: It boasts a low dropout voltage of only 310mV at full load, which enhances efficiency and allows operation close to the input supply voltage.
• High Output Current: This regulator can deliver up to 1.5A of continuous output current, making it suitable for a variety of power supply applications.
• Low Noise: With an output noise as low as 40µVRMS over a 10Hz to 100kHz bandwidth, the LT3015EMSE#PBF is perfect for noise-sensitive applications such as precision instrumentation and RF supply.
• Stable with Ceramic Capacitors: The device is stable with ceramic output capacitors, ensuring reliability and simplifying design.
• Protection Features: It includes several protection features such as reverse battery protection, current limiting, thermal limiting, and reverse current protection.

Applications

The LT3015EMSE#PBF is versatile and can be used in a diverse set of applications including:

• Automotive Electronics
• Telecommunications
• Industrial Control Systems
• Battery-Powered Devices
• Power Supplies for Negative Voltage Rails

Package and Quality

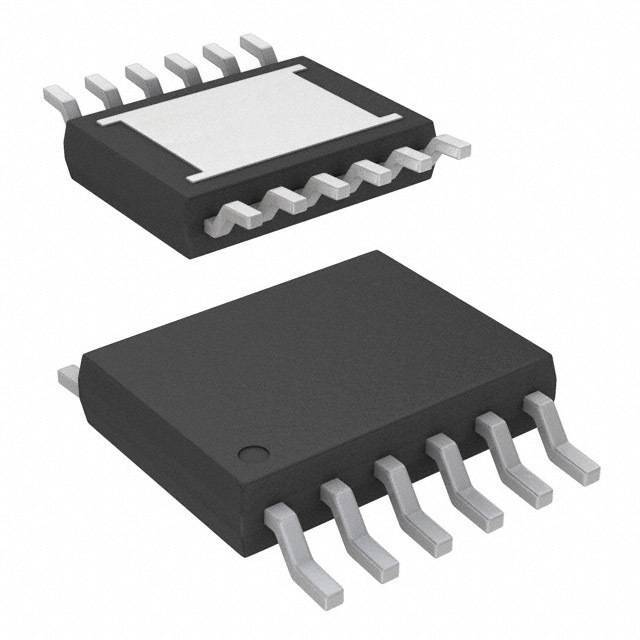

The LT3015EMSE#PBF comes in a thermally enhanced MSOP-12 package that ensures efficient heat dissipation and compact footprint. The product adheres to stringent quality standards and is RoHS compliant, reflecting Linear Technology's commitment to environmental responsibility and product reliability.
