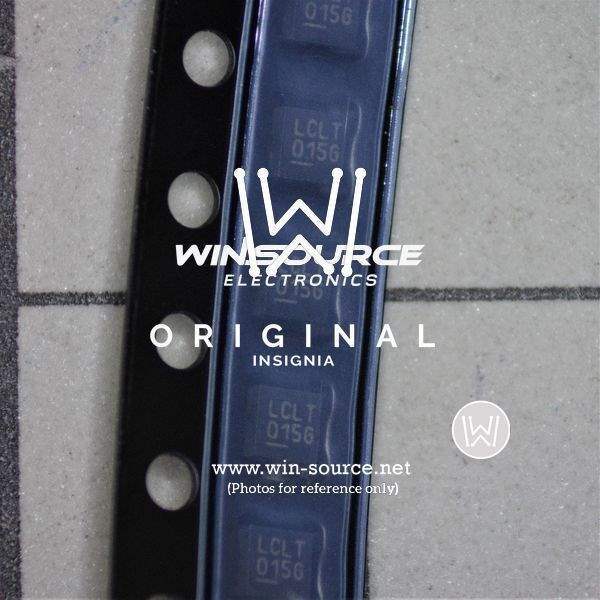

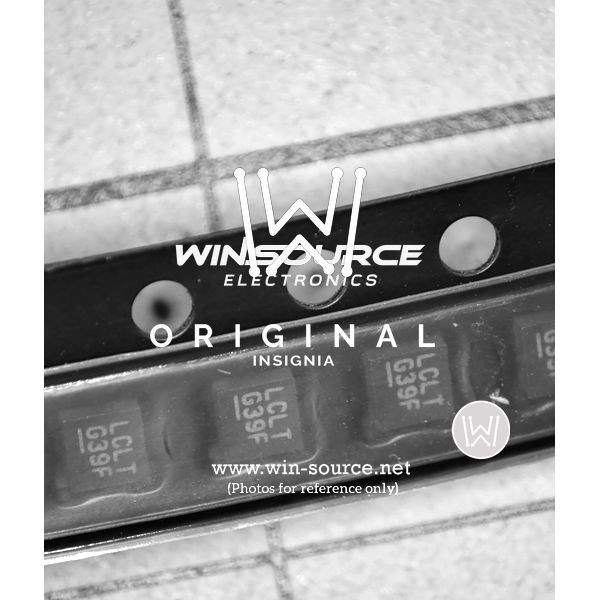

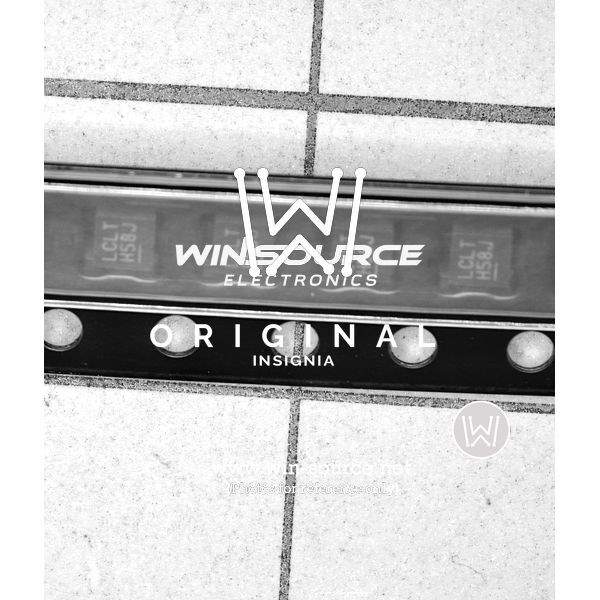

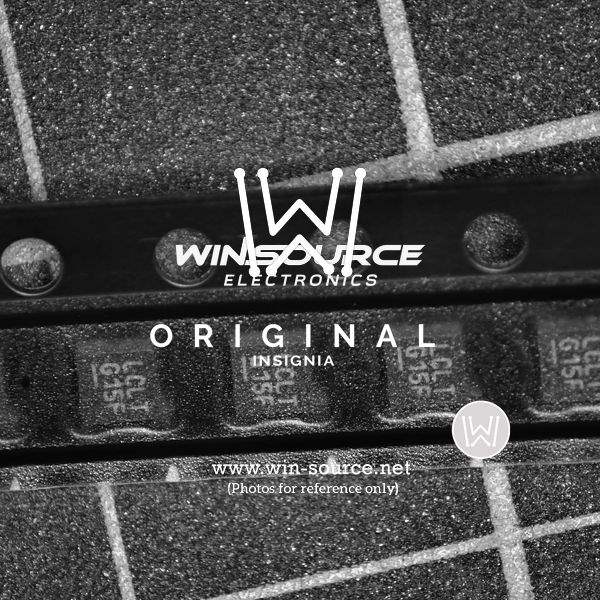

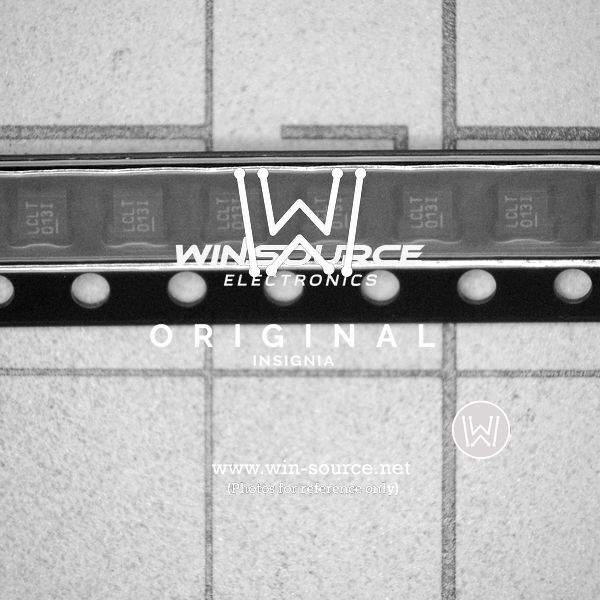

The LT3502AEDC#TRPBF is a high-performance, adjustable frequency, 1A step-down switching regulator from Linear Technology, now part of Analog Devices. Designed to be a versatile and efficient power solution, this regulator is capable of converting input voltages ranging from 3.6V to 25V down to an output voltage as low as 0.8V, which makes it suitable for a wide array of applications, including industrial, automotive, and telecommunications systems.

Key Features:

• Wide Input Voltage Range: Operates from a 3.6V to 25V input, making it ideal for applications with varying power supplies.
• High Efficiency: Integrated 0.5Ω switches deliver efficiencies up to 85%, reducing power loss and heat dissipation.
• Adjustable Switching Frequency: The switching frequency can be set with a single resistor from 1.1MHz to 2.2MHz, allowing flexibility in design.
• Low Dropout Operation: 100% duty cycle capability provides low dropout operation, which is critical for automotive and industrial systems during cold-crank or load-dump scenarios.

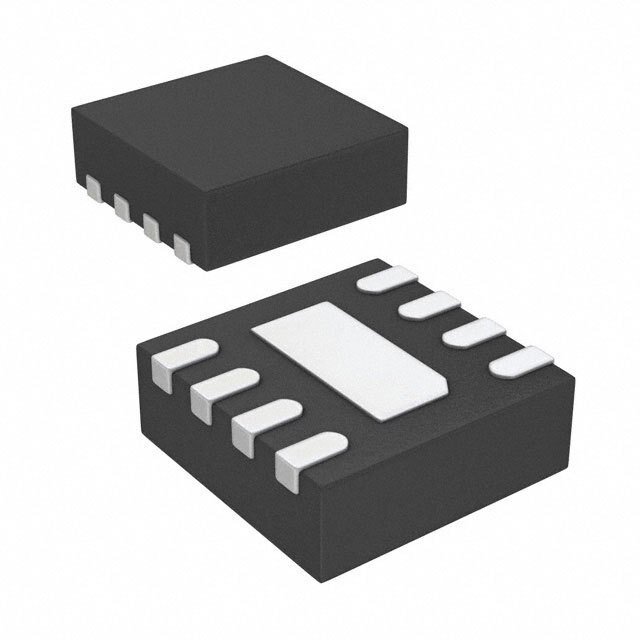

• Thermal Performance: Thermally enhanced 12-lead (3mm × 3mm) DFN packages ensure efficient heat dissipation.

Applications:

• Automotive electronics
• Industrial control systems
• Portable electronics
• Telecommunications infrastructure

Additional Benefits:

The LT3502AEDC#TRPBF also features a range of protective measures to ensure long-term reliability and performance. With internal soft-start to limit inrush current, reverse-battery protection to shield against incorrect power connections, and thermal protection to prevent overheating, this regulator is designed to operate safely under a variety of conditions. Furthermore, it is RoHS compliant and lead-free, reflecting Linear Technology's commitment to environmental sustainability.

Whether you're developing power systems for rugged industrial environments or designing compact consumer electronics, the LT3502AEDC#TRPBF offers a robust and flexible solution that combines performance with reliability.
