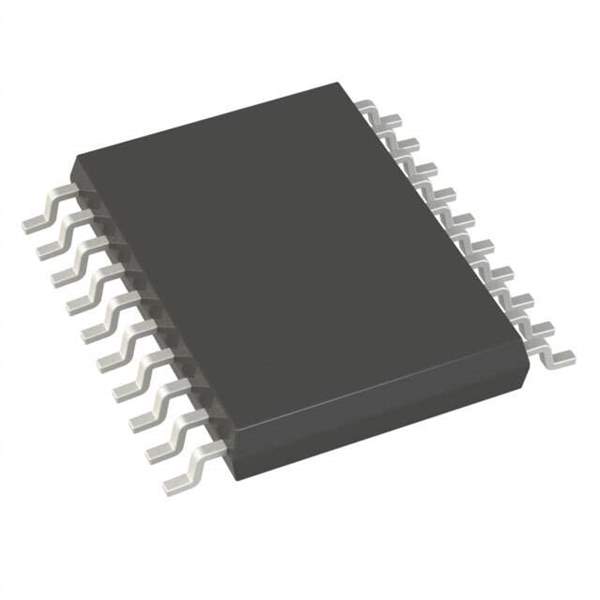

LT3510IFE#TRPBF

Part No LT3510IFE#TRPBF
Manufacturer Linear Technology
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BUCK ADJ 2A DL 20TSSOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Reel - TR
Status Active
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 2
Minimum Input Voltage 3.1V
Maximum Input Voltage 25V
Nominal Output Voltage (Min/Fixed) 0.8V
Maximum Output Voltage 23.75V
Output Current 2A
Frequency - Switching 250kHz to 1.5MHz
Synchronous Rectifier No
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 20-TSSOP-EP
Win Source Part Number 123005-LT3510IFE#TRPBF
Ultra Librarian 3D Model Ultra Librarian LT3510IFE#TRPBF CAD Model

Description

The LT3510IFE#TRPBF is a high-performance, fixed frequency step-down switching regulator from Linear Technology, designed to offer efficient power conversion for a diverse range of applications. This integrated circuit is housed in a compact 16-lead TSSOP package with an exposed thermal pad for enhanced thermal performance, making it an ideal choice for space-constrained applications.

Key Features:

  • Wide Input Voltage Range: The device can operate from an input voltage range of 3V to 25V, making it suitable for applications powered from a variety of sources, including single-cell Li-Ion, multi-cell alkaline, or nickel-metal hydride batteries, as well as industrial supplies and automotive inputs.
  • Adjustable Switching Frequency: The LT3510IFE#TRPBF allows the user to set the switching frequency from 250kHz to 1.5MHz with an external resistor, providing flexibility and enabling the optimization of efficiency, performance, and external component size.
  • Integrated Boost Diode: The inclusion of an internal boost diode simplifies the circuit design and reduces external component count, which can help in reducing overall system cost and complexity.
  • Dual Feedback Voltages: This component supports outputs with dual feedback voltages, which helps in creating a dual output converter without the need for an additional feedback resistor.
  • Thermal Protection: With thermal shutdown, the LT3510IFE#TRPBF ensures reliable operation by protecting the device from overheating.

Applications:

The LT3510IFE#TRPBF is versatile enough to be used in a wide range of applications, including:

  • Automotive and Industrial Supplies
  • Portable Instruments
  • Distributed Power Systems
  • Battery-Powered Systems

Quality and Reliability:

Linear Technology is known for its commitment to quality, and the LT3510IFE#TRPBF is no exception. It is designed to meet high standards of performance and reliability, ensuring stable operation in various environmental and operational conditions. Whether for prototyping or mass production, this DC/DC converter is a reliable choice for engineers and designers looking for a mix of efficiency, flexibility, and durability.
