Product Overview: LTC1343IGW#PBF

The LTC1343IGW#PBF is a high-performance, multi-protocol serial transceiver from Linear Technology, a brand within Analog Devices. This versatile IC is designed to handle the electrical specifications of RS232, RS485, and RS422 communication protocols, making it an ideal solution for systems that require flexible interfacing capabilities.

Key Features

• Multi-Protocol Support: The LTC1343IGW#PBF supports RS232, RS485, and RS422 protocols, allowing for seamless integration into a variety of communication systems without the need for multiple transceivers.
• High Data Rates: With support for data rates up to 1Mbps for RS485/RS422 and 120kbps for RS232, this transceiver is well-suited for high-speed data communication.
• Low Power Consumption: It is designed for efficient power usage, which is critical for battery-powered and power-sensitive applications.
• Robust ESD Protection: The device includes built-in electrostatic discharge (ESD) protection, ensuring reliability and longevity in harsh electrical environments.
• Wide Operating Temperature Range: The LTC1343IGW#PBF is operational over an industrial temperature range of -40°C to +85°C, making it suitable for use in extreme conditions.
• Integrated Charge Pump: The onboard charge pump circuitry generates the necessary RS232 voltage levels from a single 5V supply, simplifying power supply design.

Applications

The LTC1343IGW#PBF is ideal for a range of applications including industrial control systems, point-of-sale terminals, data acquisition devices, and networked communication systems. Its multi-protocol capability also makes it a perfect fit for complex systems that require communication with various types of devices.

Quality and Reliability

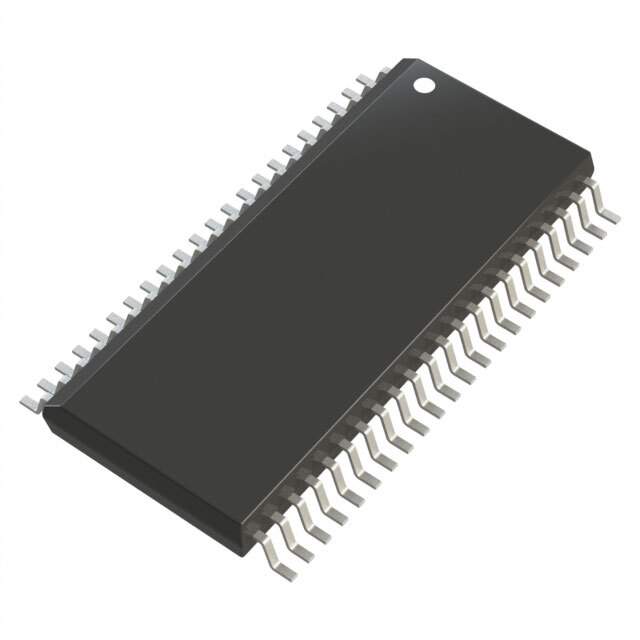

Linear Technology is known for its commitment to quality, and the LTC1343IGW#PBF is no exception. It is manufactured to the highest standards to ensure consistent performance and reliability. This product is available in a wide body 36-lead SSOP package, which is RoHS compliant and suitable for lead-free soldering processes.
