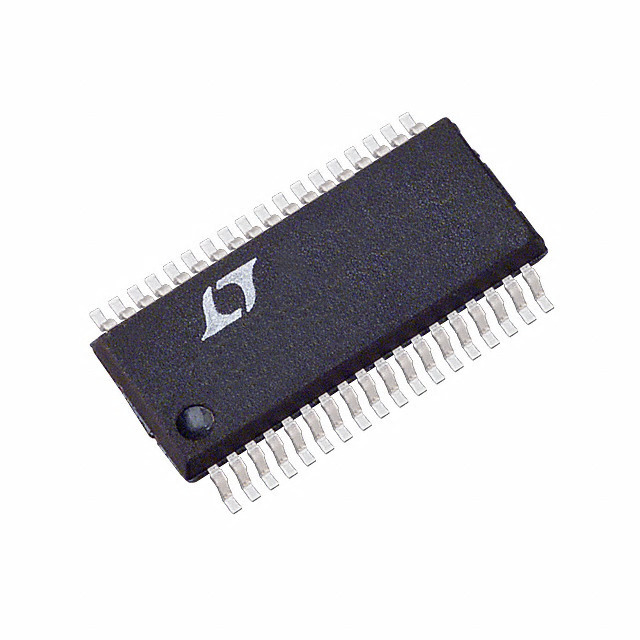

Linear Technology's LTC1740CG: A High-Performance 14-Bit, 25Msps ADC

The LTC1740CG from Linear Technology is a cutting-edge analog-to-digital converter (ADC) designed for applications that require high-speed data acquisition and precise signal processing. This 14-bit ADC operates at a sampling rate of up to 25Msps (mega samples per second), making it an excellent choice for demanding applications such as medical imaging, digital communication, and instrumentation.

Key Features

• High Resolution: With its 14-bit resolution, the LTC1740CG provides fine detail in signal conversion, ensuring that even the smallest variations in the input signal are accurately represented in the digital output.
• Fast Sampling Rate: The device's 25Msps sampling rate allows it to capture high-frequency signals without losing fidelity, crucial for applications like radar systems and high-speed data streams.
• Low Power Consumption: Despite its high performance, the LTC1740CG is designed to be power-efficient, making it suitable for portable and battery-powered devices where energy conservation is key.
• Differential Inputs: The ADC features differential inputs, which enhance noise immunity and allow for the accurate measurement of small signal amplitudes in the presence of common-mode noise.
• Flexible Power Supply: The LTC1740CG operates on a single 3.3V supply, with an optional 5V supply for the digital I/O, providing flexibility in system power design.
• No Missing Codes: Guaranteed no missing codes over temperature ensure reliable performance across a range of operating conditions.

Performance and Applications

The LTC1740CG boasts an impressive signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR), which are critical parameters in high-quality signal processing. The inclusion of features such as a shutdown mode reduces power consumption when the device is not actively converting, further extending its applicability to power-sensitive designs.

With its robust feature set, the LTC1740CG is ideally suited for applications in telecommunications, such as base stations and software-defined radios, as well as in scientific and industrial settings, where precision and speed are paramount. Its combination of high-speed operation, precision, and low power consumption makes it a versatile choice for engineers and designers looking to integrate a reliable ADC into their high-performance systems.
