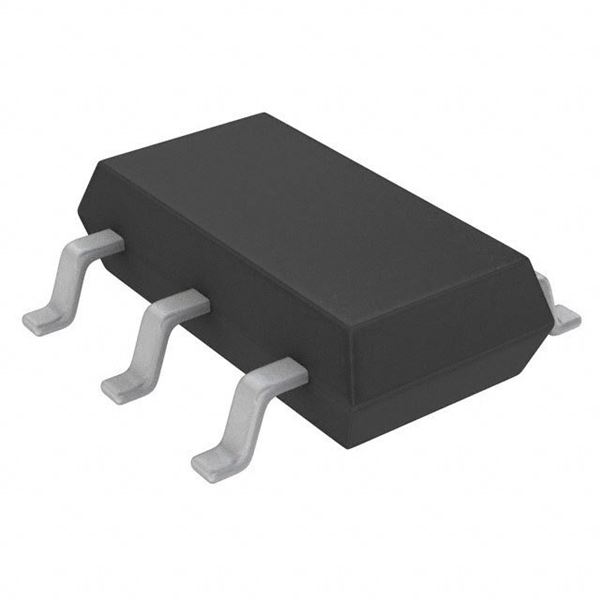

LTC1772CS6#TR - High Efficiency Step-Down DC/DC Controller

The LTC1772CS6#TR is a versatile high efficiency step-down DC/DC controller designed by Linear Technology, now part of Analog Devices, to drive power MOSFETs in a synchronous buck topology. This compact and efficient controller is housed in a space-saving 6-lead SOT-23 package, making it an ideal choice for portable and space-constrained applications.

One of the key features of the LTC1772CS6#TR is its constant frequency current mode operation, which provides excellent line and load regulation along with a predictable switching frequency. This makes it easier to optimize component selection and manage electromagnetic interference (EMI) in sensitive applications. The device operates over a wide input voltage range from 2.65V to 9.8V, making it suitable for single Li-Ion, multiple Alkaline/NiMH cells, or other standard power sources.

The LTC1772CS6#TR boasts high efficiency due to its low quiescent current and the use of synchronous rectification. The internal switch driver is capable of driving a high side N-channel MOSFET and a synchronous N-channel MOSFET, which reduces power loss by eliminating the need for an external Schottky diode. The high switching frequency of up to 550kHz allows the use of small surface mount inductors and capacitors, further saving board space and reducing overall solution size.

Additional features include a Burst Mode® operation which ensures high efficiency at low output currents, a feature particularly important for battery-powered devices. It also has a shutdown mode that reduces supply current to less than 5µA, further preserving battery life. The LTC1772CS6#TR also incorporates protection features such as overvoltage protection and thermal shutdown to safeguard the device and the system it controls under adverse conditions.

Overall, the LTC1772CS6#TR from Linear Technology is a high-performance solution for designers looking to implement a compact, efficient, and reliable power management system. Its robust feature set and versatility make it an excellent choice for a wide range of applications, including handheld devices, portable computers, and distributed power systems.
