LTC3114EFE-1#PBF - High-Efficiency, 40V, 4A Synchronous Buck-Boost DC/DC Converter

The LTC3114EFE-1#PBF is a versatile, high-efficiency, synchronous buck-boost DC/DC converter from Linear Technology, now part of Analog Devices. Designed to operate from a wide range of power sources, this converter is capable of delivering up to 4A of continuous output current. Its advanced design allows it to seamlessly transition between buck and boost modes, providing a stable output voltage even when the input voltage fluctuates above or below the output voltage.

With an input voltage range of 2.7V to 40V, the LTC3114EFE-1#PBF is suitable for a variety of applications, including automotive, industrial, and portable devices that require a regulated power supply. The device features a fixed frequency, current mode control architecture that provides excellent line and load regulation, as well as low noise operation.

The LTC3114EFE-1#PBF offers programmable switching frequencies between 400kHz and 2MHz, allowing designers to optimize the size of external components and maximize efficiency. Additionally, the device's low minimum on-time enables it to step down to low output voltages even at high switching frequencies, making it ideal for applications with wide input-to-output voltage ratios.

Key features of the LTC3114EFE-1#PBF include:

• Wide input voltage range: 2.7V to 40V
• Up to 4A continuous output current
• High efficiency: Up to 95%
• Synchronous operation for reduced power loss
• Programmable switching frequency: 400kHz to 2MHz
• Pin-selectable Burst Mode operation for improved light-load efficiency

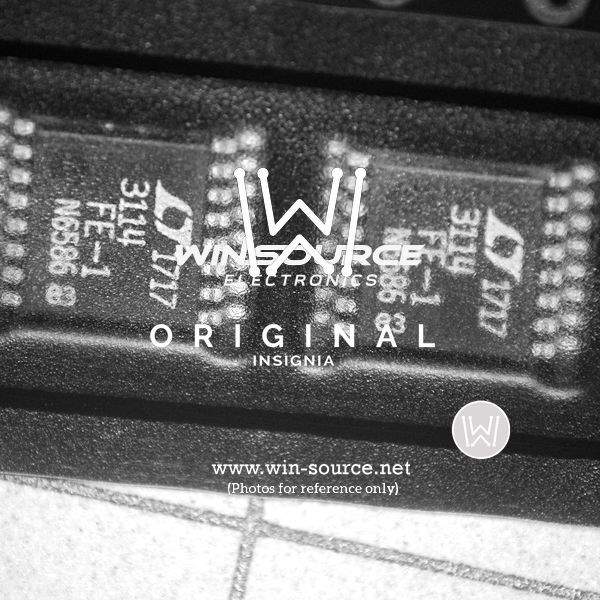

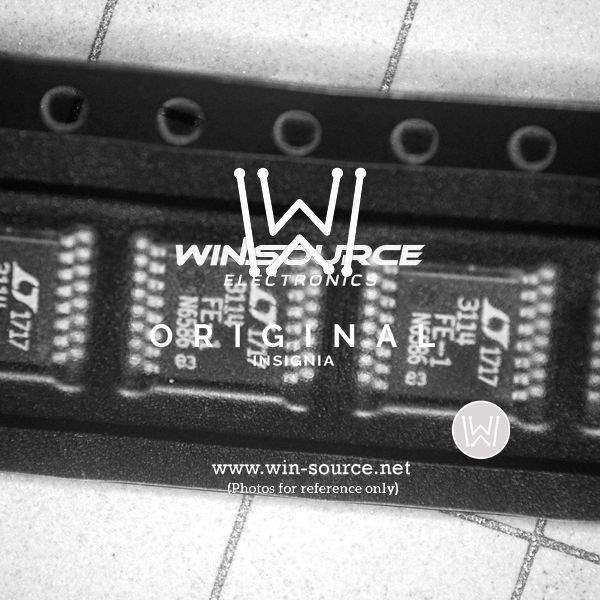

• Thermally enhanced 20-lead TSSOP package

For protection, the LTC3114EFE-1#PBF includes overvoltage, overcurrent, and overtemperature protection, ensuring reliable operation under adverse conditions. The device is available in a thermally enhanced 20-lead TSSOP package, which is designed to handle high power levels and improve thermal performance.

Whether you're designing a power supply for a portable device, an automotive application, or an industrial system, the LTC3114EFE-1#PBF offers the flexibility, efficiency, and reliability needed to meet your stringent power requirements.
