Linear Technology's LTC3600EMSE#PBF High Efficiency, Monolithic Synchronous Step-Down DC/DC Converter

The LTC3600EMSE#PBF is a high-performance, monolithic synchronous buck regulator from Linear Technology, a brand of Analog Devices, designed to deliver high efficiency, precise regulation, and a compact footprint for a wide range of power supply applications. This versatile DC/DC converter is an ideal solution for portable devices, industrial equipment, and automotive systems that require efficient power management.

Featuring a wide input voltage range of 4V to 15V, the LTC3600EMSE#PBF can provide a continuous output current up to 1.5A, making it suitable for single-cell Li-Ion applications, as well as fixed 5V and 12V systems. The device operates at a selectable fixed frequency between 300kHz and 3MHz, which allows designers to balance efficiency against external component size. By choosing a higher switching frequency, smaller inductors and capacitors can be used, resulting in a more compact PCB layout.

The LTC3600EMSE#PBF incorporates internal switches with RDS(ON) of only 0.09Ω and 0.12Ω for the high-side and low-side switches, respectively. This low RDS(ON) contributes to the converter's high efficiency, which can reach up to 95%, minimizing heat generation and improving system reliability.

With its No RSENSE™ feature, the LTC3600EMSE#PBF eliminates the need for an external current sense resistor, further simplifying the design and reducing overall solution cost. Additionally, the device offers a programmable soft-start function to control the inrush current during startup, enhancing system stability.

Other key features of the LTC3600EMSE#PBF include overvoltage protection, undervoltage lockout, thermal shutdown, and a power good status output. These integrated protection features ensure that the power supply operates within safe parameters, protecting both the converter and the downstream components from damage.

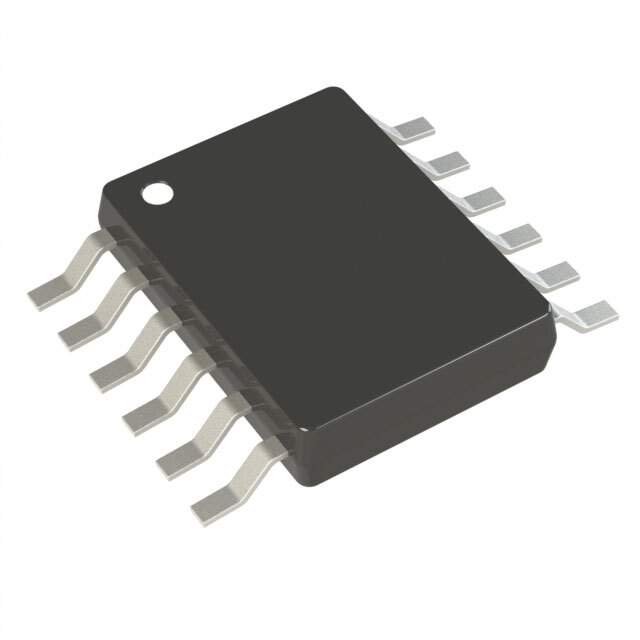

The LTC3600EMSE#PBF is available in a thermally efficient 12-lead MSOP package with an exposed pad for enhanced thermal performance. This package is designed to ensure reliable operation even in environments with elevated temperatures, making it a robust choice for challenging applications.

Overall, the LTC3600EMSE#PBF from Linear Technology stands out as a high-efficiency, feature-rich, and compact solution for modern power supply designs requiring a high level of performance and reliability.
