The LTC4259AIGW-1#PBF is a sophisticated IC solution designed by Linear Technology, now part of Analog Devices, to facilitate Power over Ethernet (PoE) capabilities in networking and telecommunications equipment. This quad controller is compliant with the IEEE 802.3af standard, which ensures interoperability with various PoE devices such as VoIP phones, wireless access points, and security cameras.

Key Features

• Quad Independent PoE Ports: The LTC4259AIGW-1#PBF can control and monitor up to four PoE ports individually, providing versatility and scalability for network infrastructure.
• Comprehensive Protection: The device includes overcurrent protection, undercurrent detection, and fault protection to ensure safe and reliable operation.
• Advanced Power Management: It supports per-port power management, allowing for prioritized power allocation and power limiting to prevent overloading of the power supply.
• High Integration: The integration of a 2.5kV isolation barrier for 1000BASE-T applications reduces the need for additional components, simplifying design and saving space on the PCB.

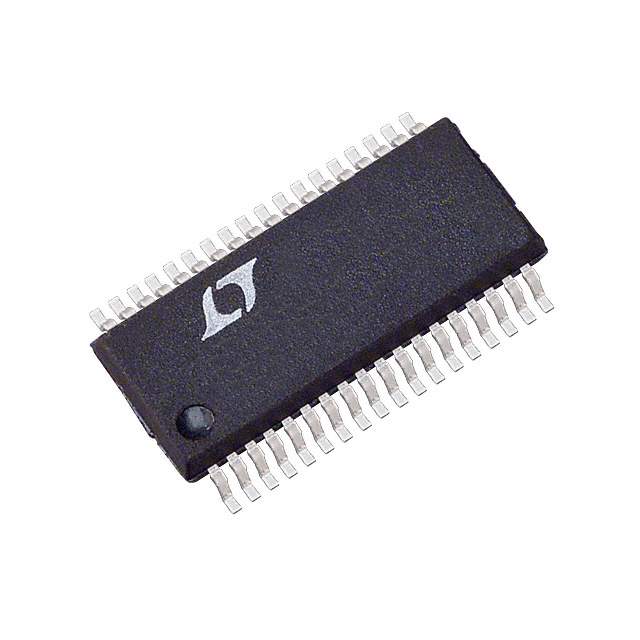

• Robust Thermal Performance: Housed in a 36-lead SSOP package, the LTC4259AIGW-1#PBF is designed for enhanced thermal performance, ensuring stability across a wide range of operating conditions.

Applications

The LTC4259AIGW-1#PBF is ideal for a variety of applications where PoE is required. It is particularly well-suited for multiport network switches, routers, and midspan power injectors. Its ability to manage power effectively makes it a great choice for enterprise-level networking equipment that demands reliability and efficiency.

Technical Specifications

The controller operates over a supply voltage range of 44V to 57V, which aligns with the PoE standard voltage range. It features an operating temperature range of -40°C to 85°C, allowing for deployment in environments with extreme temperature variations. The LTC4259AIGW-1#PBF's IEEE 802.3af compliance ensures that it will seamlessly integrate with other compliant devices, offering a high degree of compatibility and ease of use in complex systems.

For engineers and system integrators looking to incorporate PoE into their designs, the LTC4259AIGW-1#PBF from Linear Technology provides a reliable and feature-rich solution that can meet the demands of modern networked devices.
