Linear Technology LTC5540IUH#PBF RF Mixer

The LTC5540IUH#PBF is a high-performance, passive double-balanced mixer from Linear Technology, designed to provide exceptional RF performance for a wide variety of radio frequency applications. This active mixer is an ideal choice for frequency conversion in wireless systems, including point-to-point radios, test equipment, and radar systems, where high linearity, wide dynamic range, and low noise are critical.

Featuring a wide RF frequency range from 600MHz to 4GHz, the LTC5540IUH#PBF can handle a broad spectrum of signals, making it versatile for multiple RF applications. Its local oscillator (LO) frequency range also spans from 600MHz to 4GHz, providing flexibility in designing frequency plans. The intermediate frequency (IF) range of the device is DC to 1GHz, which accommodates a wide variety of modulation formats and signal bandwidths.

The LTC5540IUH#PBF boasts an impressive conversion gain of 2.4dB, which helps to maintain signal integrity by amplifying the RF signal without introducing significant noise. It also features a high input IP3 (third-order intercept point) of 24.4dBm at 900MHz, indicating excellent linearity and the ability to handle strong unwanted signals without distortion. This is essential for maintaining signal clarity in environments with high levels of interference.

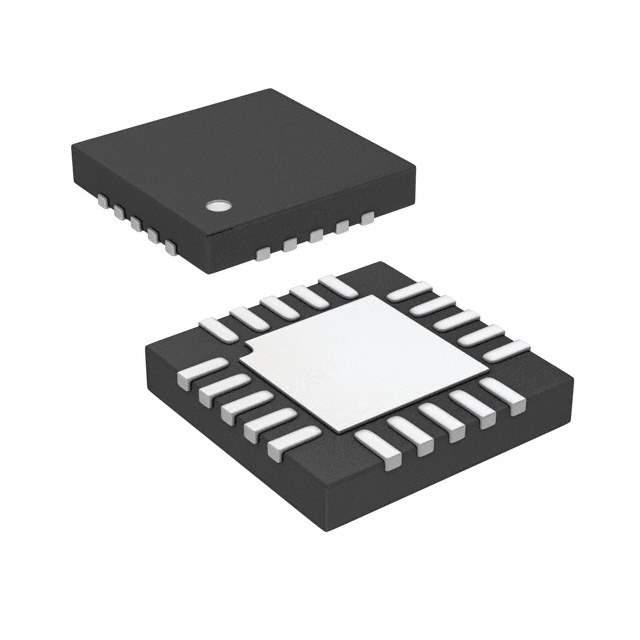

The mixer operates with a single supply voltage from 3.3V to 5.25V, providing ease of integration into various system designs. It also includes an integrated LO buffer, which simplifies the LO drive requirement and reduces the need for external components. The LTC5540IUH#PBF comes in a compact, 16-lead QFN package that is RoHS compliant, making it suitable for space-constrained applications while adhering to environmental standards.

With its robust feature set and high-performance capabilities, the LTC5540IUH#PBF is an excellent choice for engineers looking to optimize their RF systems for superior signal integrity and reliability.
