The LTC5553IUDB#TRMPBF is a high-performance, double-balanced mixer from Linear Technology, designed to meet the demanding requirements of wireless infrastructure and RF applications. It offers a wide frequency range, exceptional linearity, and a high level of integration, making it a versatile choice for designers looking to enhance their RF signal chains.

Key Features

• Wide Frequency Range: The LTC5553IUDB#TRMPBF provides a broad frequency range from 3GHz to 20GHz at the RF and LO ports, ensuring compatibility with a wide array of RF systems and applications.
• High Linearity: With an Input IP3 of +24dBm at 14GHz, this mixer delivers excellent linearity, which is crucial for maintaining signal integrity in complex RF environments.
• Integrated LO Buffer: The device includes an integrated LO buffer amplifier, which simplifies the design and reduces the number of external components required.
• Low LO Drive Level: The mixer operates with a low LO drive level of 0dBm, minimizing power consumption and the need for additional amplification.
• Passive Mixer Core: A passive mixer core provides robust performance with a low noise figure and good conversion loss characteristics.

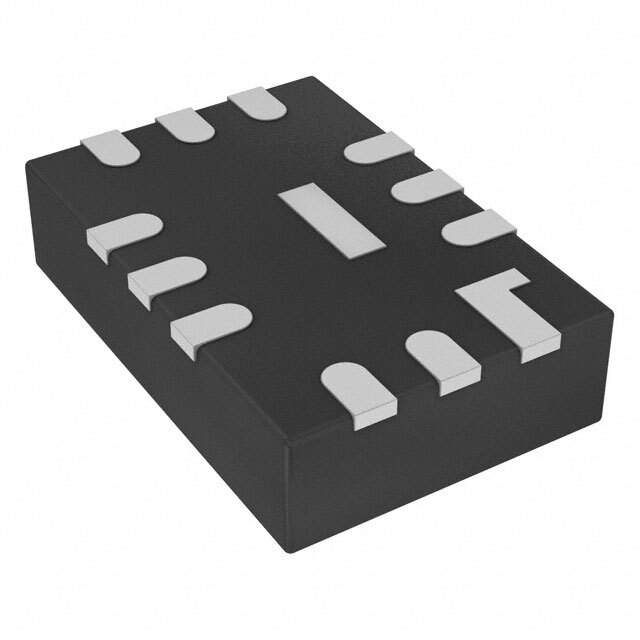

• Compact Package: Housed in a compact, 12-lead, 3mm x 2mm plastic QFN package, the LTC5553IUDB#TRMPBF saves valuable board space and is suitable for space-constrained applications.

Applications

The LTC5553IUDB#TRMPBF is ideal for a variety of applications, including:

• Wireless Infrastructure
• Microwave Point-to-Point Systems
• Test Equipment
• Satellite Communications
• RFID Readers

Quality and Reliability

Linear Technology is known for its commitment to quality, and the LTC5553IUDB#TRMPBF is no exception. It is designed to meet the stringent requirements of the industrial and telecommunications markets, ensuring reliable performance even in the most challenging conditions.

Conclusion

Overall, the LTC5553IUDB#TRMPBF is a robust and flexible solution for any design that requires a high-performance RF mixer. With its wide frequency range, high linearity, and integrated features, it streamlines the design process and enhances overall system performance.
