The LTC6102HMS8 is a versatile high side current sense amplifier designed by Linear Technology, a brand of Analog Devices, to address the need for accurate and reliable current monitoring in a variety of applications. This precision amplifier is capable of monitoring current via the voltage drop across a shunt resistor, enabling the detection of both DC and AC currents along with complex waveforms.

Key Features

• High Side Measurement: The LTC6102HMS8 measures the current flowing through a shunt resistor located in the high side of the circuit, allowing for the detection of load currents without interfering with the ground path.
• Wide Input Common Mode Range: This device operates with a common mode voltage range from 4V up to 60V, making it suitable for a broad range of applications, including those with high-side voltages.
• High Accuracy: With a typical input offset voltage of just 170μV and an input bias current of 170nA, the LTC6102HMS8 ensures precise current measurement, which is critical for system performance and efficiency.
• Low Power Consumption: The device features a quiescent current of 100μA (typical), which minimizes power loss and makes it ideal for power-sensitive applications.
• Multiple Gain Options: It offers selectable gain settings, which can be configured via external resistors, providing flexibility and precision for different current ranges.

Applications

The LTC6102HMS8 is suitable for a wide array of applications, including:

• Automotive battery monitoring
• Power management systems
• Portable equipment
• Industrial and process control systems
• Telecommunications infrastructure

Package and Reliability

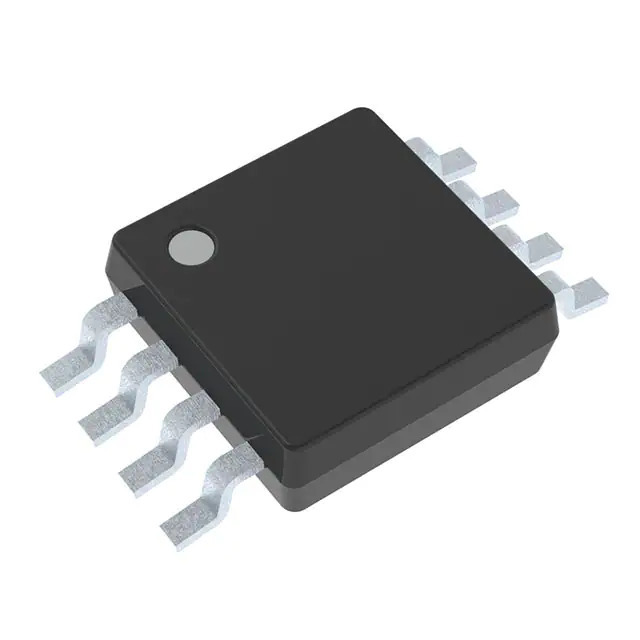

The LTC6102HMS8 comes in an MSOP-8 package, which is compact and suitable for space-constrained applications. Its robust design ensures reliable operation even in harsh environments, making it a preferred choice for industrial and automotive applications where temperature extremes and high levels of electrical noise are common.

Conclusion

Overall, the LTC6102HMS8 from Linear Technology is a high-performance, reliable solution for current sensing applications that require high accuracy, wide input voltage range, and low power consumption. Its versatility and robustness make it an excellent choice for designers looking to implement precise current monitoring in their systems.
