LTC6240IS5 High Speed, Low Noise, Low Power Operational Amplifier

The LTC6240IS5 is a high-performance operational amplifier (op-amp) from Linear Technology, tailored for applications that demand both low power consumption and high speed. This op-amp is an excellent choice for battery-powered systems, portable devices, and any circuitry where power efficiency and operational speed are crucial.

Key Features

• High Speed: With a gain-bandwidth product of 18MHz, the LTC6240IS5 offers fast settling times and high-frequency performance, making it suitable for fast signal processing applications.
• Low Noise: The device exhibits a low input noise voltage of 1.1nV/√Hz, ensuring signal integrity and minimizing noise in sensitive applications like audio and instrumentation.
• Low Power Consumption: The LTC6240IS5 operates with a supply current of just 1mA, making it an energy-efficient solution for extended battery life in portable devices.
• Rail-to-Rail Output: This feature allows the output to swing from the negative supply rail to the positive one, maximizing the dynamic range in single-supply operations.
• Wide Supply Range: The op-amp can be powered from a single 2.8V to 11V supply or dual supplies from ±1.4V to ±5.5V, providing design flexibility for various applications.
• Operating Temperature Range: The LTC6240IS5 is designed to operate over the industrial temperature range of -40°C to 85°C, ensuring reliable performance in harsh environments.

Applications

• Photodiode Amplification
• Portable Instrumentation
• Battery-Powered Equipment
• Data Acquisition Systems
• Active Filters
• Medical Devices
• Audio Amplification

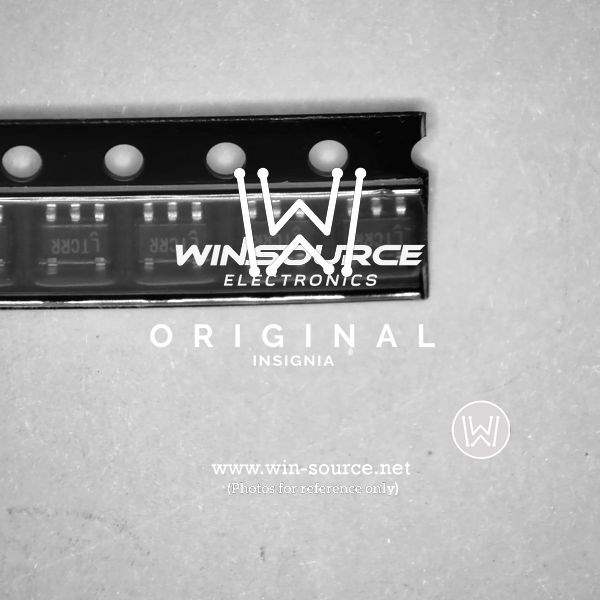

With its compact SOT-23 package, the LTC6240IS5 is designed to occupy minimal board space while offering robust features. Its combination of speed, low noise, and low power consumption, along with the rail-to-rail output and wide supply range, make it a versatile op-amp that can be deployed in a wide array of electronic designs.

Linear Technology's commitment to high-quality components ensures that the LTC6240IS5 will deliver consistent performance and reliability, making it a preferred choice for designers looking to optimize their systems for speed and power efficiency.
