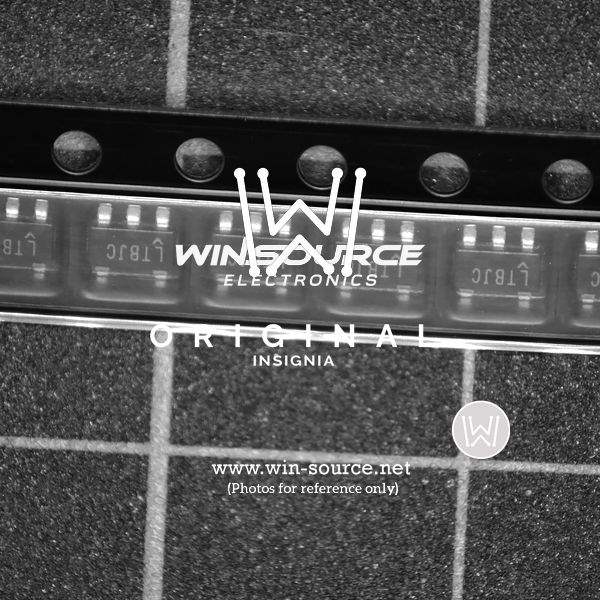

The LTC6905CS5#TRMPBF is a high-performance, precision silicon oscillator from Linear Technology, designed to provide a stable and accurate clock signal for a wide range of electronic applications. This compact and robust component comes in a surface-mount, SOT-23 package, making it an ideal choice for space-constrained applications.

Key Features

• Frequency Range: The device offers a programmable frequency range from 17MHz to 170MHz, which can be set using a single resistor. This feature provides flexibility and reduces the need for multiple oscillators with different frequencies.
• High Accuracy: With a frequency accuracy of ±1.5%, the LTC6905CS5#TRMPBF ensures reliable and precise clock generation for critical applications.
• Low Power Consumption: The oscillator operates with a supply voltage ranging from 2.7V to 5.5V, providing low power consumption that is suitable for battery-powered devices.
• Temperature Stability: It maintains stable performance across a wide temperature range of -40°C to 85°C, making it suitable for industrial and automotive applications where temperature variations are common.
• Output Enable: An output enable pin allows the user to enable or disable the oscillator output, providing additional control for power-saving modes and system management.

Applications

The LTC6905CS5#TRMPBF is versatile and can be used in various applications, including:

• Portable and wireless devices
• Networking equipment
• Computer peripherals
• Microprocessor and microcontroller clock generation
• Test and measurement systems

Quality and Reliability

Linear Technology is known for its commitment to quality, and the LTC6905CS5#TRMPBF is no exception. It is designed to meet stringent quality and reliability standards, ensuring consistent performance and longevity in the field. The device is also RoHS compliant, adhering to environmental regulations and catering to eco-conscious customers.

Overall, the LTC6905CS5#TRMPBF from Linear Technology is a reliable and flexible solution for systems requiring a stable and precise clock signal, all within a small form factor that is easy to integrate into a wide range of electronic designs.
