Linear Technology's LTM4600EV - High Efficiency, DC/DC μModule Regulator

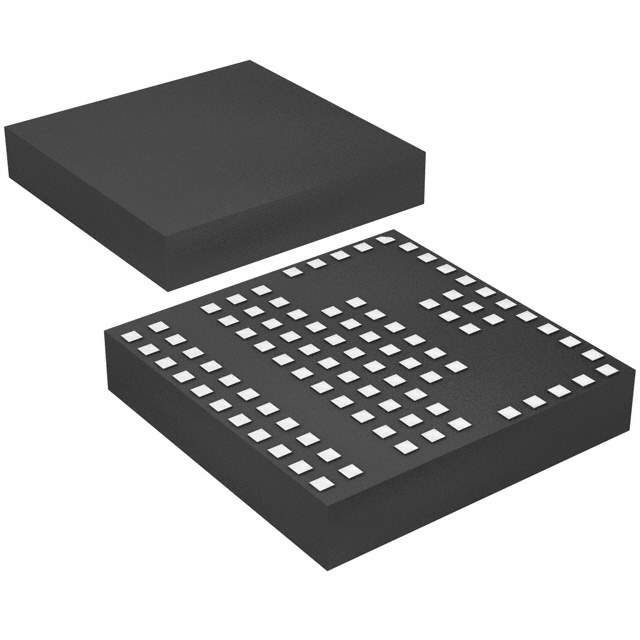

The LTM4600EV is a complete and high-efficiency DC/DC step-down power supply module manufactured by Linear Technology. Designed to simplify the power supply design process, this innovative μModule (micro module) regulator integrates the inductor, MOSFETs, DC/DC controller, and compensation circuitry within a compact, surface-mount LGA package.

With an impressive operating input voltage range of 4.5V to 20V, the LTM4600EV is versatile enough to handle a wide array of applications, from simple point-of-load conversions to more complex system power supplies. Its ability to deliver up to 10A of continuous output current makes it a reliable choice for powering high-performance processors, FPGAs, GPUs, and other demanding ICs.

One of the key features of the LTM4600EV is its high efficiency, which can reach up to 96%, resulting in minimal heat generation and negating the need for heat sinks in most applications. This efficiency, combined with its advanced thermal design, enables operation in ambient temperatures ranging from -40°C to +125°C.

The device also boasts a high switching frequency of up to 1MHz, which allows the use of small external capacitors and resistors, thereby reducing the overall solution footprint and simplifying the design process. Furthermore, the LTM4600EV provides a precise 0.8V to 5V output voltage range, adjustable via a single external resistor, offering flexibility to power a variety of loads.

For enhanced performance, the LTM4600EV features advanced protection mechanisms, including overvoltage, overcurrent, and over-temperature protection. The module also supports tracking and margining functions, which are essential for complex power systems that require sequencing and voltage adjustments.

In summary, the LTM4600EV from Linear Technology is a powerful, efficient, and highly integrated DC/DC regulator module that simplifies the design of complex power systems while ensuring reliability and performance in a wide range of applications.
