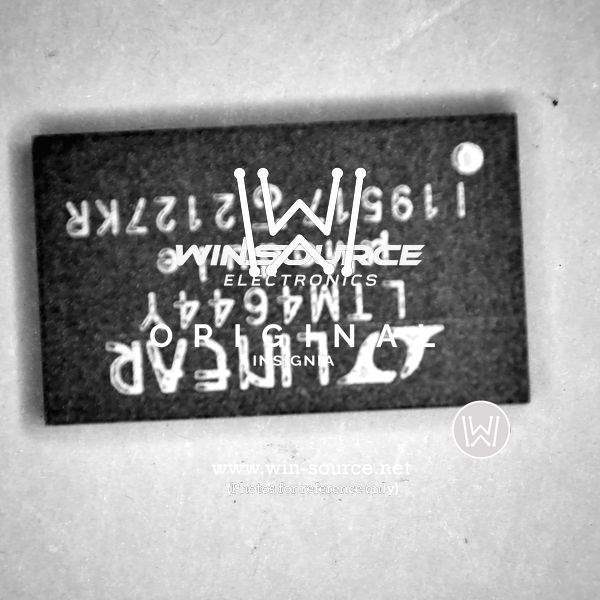

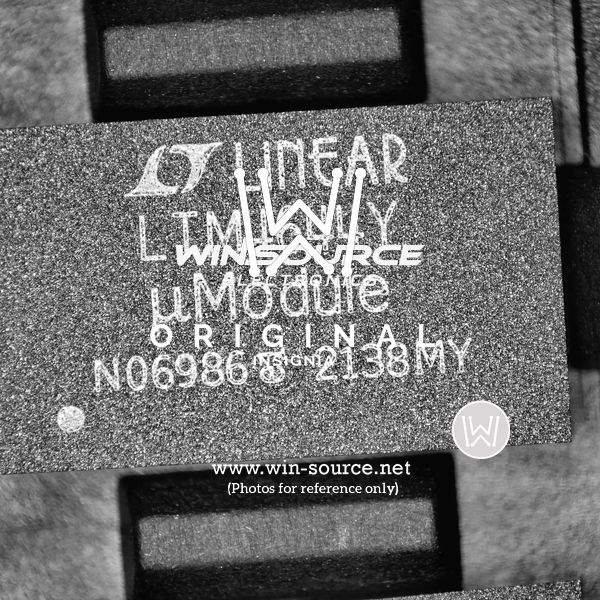

The LTM4644Y from Linear Technology is a high-performance quad DC/DC µModule (micromodule) regulator designed for a wide range of applications. This compact, efficient, and versatile power management solution integrates four complete switch mode power supplies in a single package, making it an ideal choice for space-constrained applications.

Key Features:

• Wide Input Voltage Range: The LTM4644Y operates from a 4V to 14V input supply, catering to a variety of sources including intermediate bus voltages.
• Adjustable Output Voltages: Each of the four regulators can deliver an output voltage range from 0.6V to 5.5V, which can be set via external resistors, providing flexibility for different voltage requirements.
• High Efficiency: The device features high-efficiency step-down switching regulators with fast transient response, ensuring stable operation under varying load conditions.
• Compact Design: The LTM4644Y comes in a small 9mm x 15mm x 5.01mm BGA package, saving precious board space while offering a complete power management solution.
• Integrated Components: It includes inductors, power switches, and all the necessary support components, reducing the number of external components required and simplifying the design process.
• Configurable: The four channels can be used independently or configured in parallel for higher current applications, providing designers with greater flexibility.

Applications:

The LTM4644Y is suitable for a broad spectrum of applications, including:

• Datacom and Telecom Systems
• Industrial Equipment
• Medical Devices
• Automotive Electronics
• Networking and Storage Equipment

Additional Benefits:

With advanced features such as overvoltage, overcurrent, and overtemperature protection, the LTM4644Y ensures reliable performance in demanding environments. Its high switching frequency and current mode control enable a fast transient response and excellent loop stability. Additionally, the device offers selectable burst mode operation for improved efficiency at light loads, making it a highly energy-efficient solution.

Overall, the LTM4644Y by Linear Technology is a powerful, efficient, and flexible solution for managing multiple power rails in a compact and efficient manner.
