The LTM8021IV is a complete micro module DC/DC converter from Linear Technology, designed to offer a compact, efficient, and easy-to-use power management solution for a wide range of applications. This innovative product integrates the inductor, power switches, and all support components into a single package, simplifying the design process and reducing the overall footprint on the PCB.

Key Features

• Adjustable Output Voltage: The LTM8021IV allows for an adjustable output voltage from 2.5V to 12.6V, providing flexibility for various voltage requirements.
• Wide Input Voltage Range: It operates over a wide input voltage range of 3.6V to 36V, making it suitable for a variety of input sources, including industrial supplies and automotive batteries.
• High Efficiency: With its high efficiency, the LTM8021IV can deliver up to 200mA of continuous output current at voltages as high as 12.6V with minimal power loss.

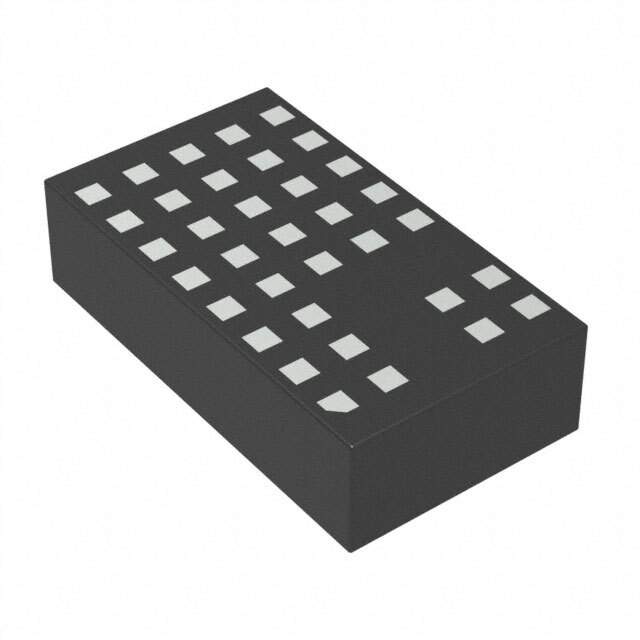

• Compact Design: The micro module design integrates several components into a small footprint package (LGA), measuring only 9mm x 11.25mm x 2.82mm, which helps in saving space on densely populated boards.
• Thermal Performance: The LTM8021IV is encapsulated in a thermally efficient package that enhances heat dissipation, ensuring reliable operation even at full load and in high-temperature environments.
• Low EMI: Designed to minimize electromagnetic interference, the LTM8021IV is suitable for noise-sensitive applications.

Applications

The LTM8021IV is versatile enough to be used in a wide array of applications, including but not limited to:

• Telecommunications
• Industrial Equipment
• Automotive Systems
• Data Acquisition Systems
• Portable Devices

Quality and Reliability

Linear Technology is known for its commitment to quality, and the LTM8021IV is no exception. It is designed to meet high standards of reliability and performance, ensuring a dependable power solution for critical applications.
