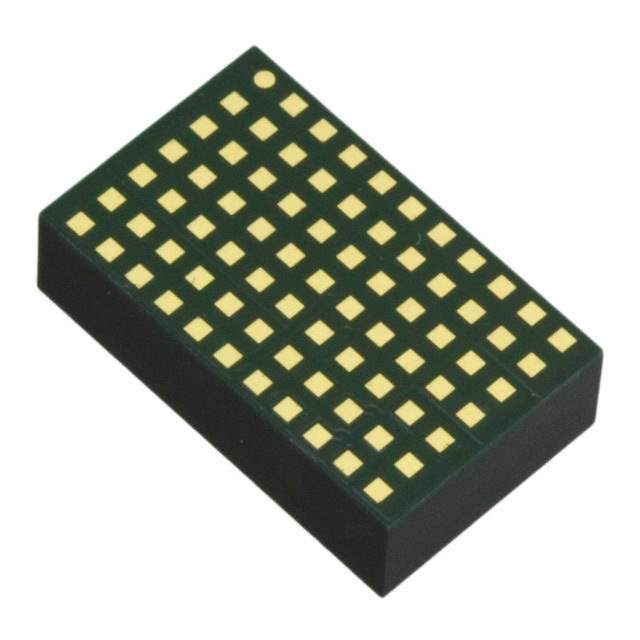

The LTM8061IV-8.2#PBF is a robust and versatile micro-module (μModule) from Linear Technology, designed to be a complete 8.2V, 2A step-down power supply solution. This innovative product integrates a switching regulator, inductor, power switches, and all the necessary support components into a compact, surface-mount package. This design simplifies the implementation of a high-efficiency power supply with a minimal footprint on the PCB.

Key Features:

• Integrated Solution: The LTM8061IV-8.2#PBF combines several components into a single package, reducing the design complexity and saving board space.
• High Efficiency: Its high switching frequency and low-resistance MOSFETs ensure efficient operation, making it suitable for battery-powered and heat-sensitive applications.
• Wide Input Range: The device can accept an input voltage range from 3.6V to 40V, providing flexibility for various supply sources.
• Adjustable Output Voltage: While the module is pre-configured to deliver 8.2V, it allows for output voltage adjustment with a single resistor for application-specific requirements.
• Thermal Protection: The module includes over-temperature protection, safeguarding the device and the system under excessive thermal conditions.
• Robust Design: The LTM8061IV-8.2#PBF is designed for harsh environments and can operate at a junction temperature range from -40°C to +125°C.

Applications:

The LTM8061IV-8.2#PBF is ideal for a wide range of applications, including industrial controls, automotive supplies, distributed power systems, and medical equipment. Its compact size and ease of use make it particularly well-suited for space-constrained applications that require a reliable and efficient power supply solution.

Quality and Reliability:

Linear Technology is known for its commitment to high quality and reliability. The LTM8061IV-8.2#PBF is manufactured to meet these stringent standards, ensuring consistent performance and durability for the end-user. The product is available in a rugged, lead-free (RoHS compliant) package, ensuring it meets the requirements of environmentally conscious applications.
