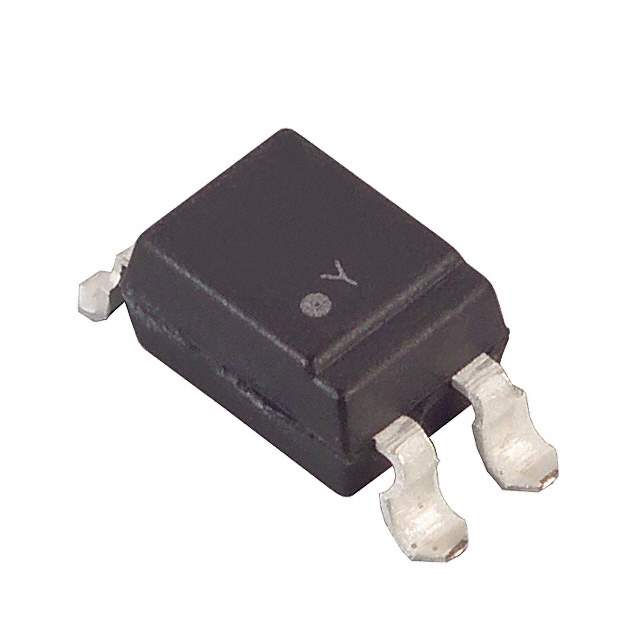

LTV-8141S-TA1 Real Image
Same model may have multiple batches, images only for reference.

LTV-8141S-TA1

Part No LTV-8141S-TA1
Manufacturer Lite-On Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV DARLINGTON 4-SMD
Datasheet
LTV-8141S-TA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Lite-On Inc.
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 600% @ 1mA
Maximum DC Current Transfer Ratio 7500% @ 1mA
Rise and Fall Time 60μs, 53μs
Input Type AC, DC
Output Type Darlington
Maximum Output Voltage 35V
Channel Output Current 80mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 1V
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 108492-LTV-8141S-TA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LTV-8141S-TA1 CAD Model

Description

The Lite-On Inc. LTV-8141S-TA1 is a Darlington output type optocoupler. It has a minimum DC current transfer ratio of 600% @ 1mA and a maximum DC current transfer ratio of 7500% @ 1mA. The optocoupler has a Vce saturation (Max) of 1V and an isolation voltage of 5000Vrms. It is packaged in a 4-SMD package and has a temperature range of -30°C to 100°C. The optocoupler has a channel output current of 80mA and a continuous forward current-max of 50mA. It is ideal for use in isolator applications.
