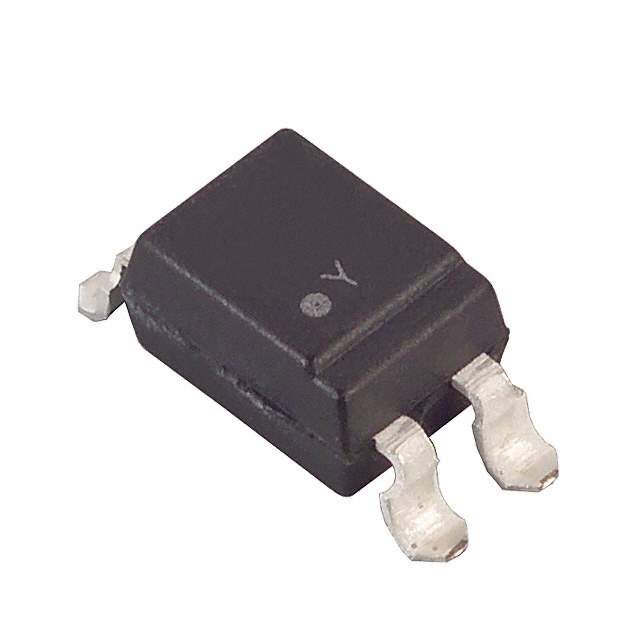

LTV-815S-TA Real Image
Same model may have multiple batches, images only for reference.

LTV-815S-TA

Part No LTV-815S-TA
Manufacturer Lite-On Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV DARLINGTON 4-SMD
Datasheet
LTV-815S-TA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Lite-On Inc.
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 600% @ 1mA
Maximum DC Current Transfer Ratio 7500% @ 1mA
Rise and Fall Time 60μs, 53μs
Input Type DC
Output Type Darlington
Maximum Output Voltage 35V
Channel Output Current 80mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 1V
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 122176-LTV-815S-TA
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian LTV-815S-TA CAD Model

Description

The Lite-On Inc. Isolator optoelectronic component is a high-performance device that is perfect for use in various electronic devices.

  • Win Source Part Number: 122176-LTV-815S-TA
  • Operating Temperature Range: -30°C to 100°C
  • Maximum Continuous Forward Current: 50mA
  • Package: 4-SMD
  • Supply and Demand Status: Limited
  • Quantity per Package: 1k pcs
