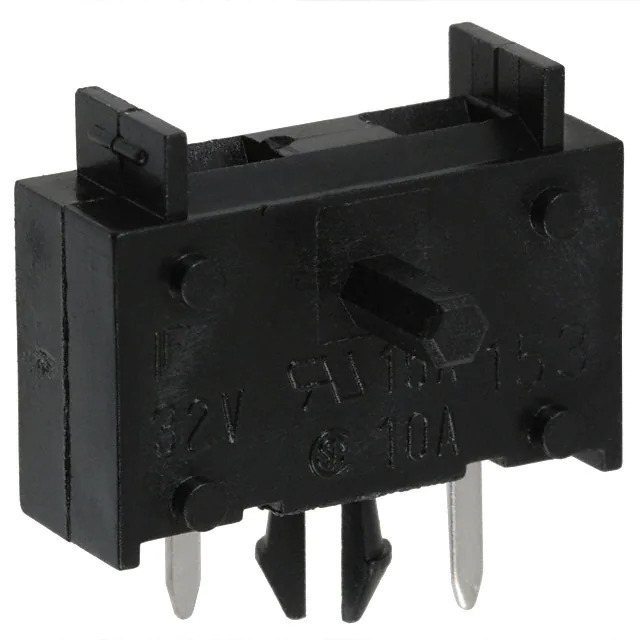

Same model may have multiple batches, images only for reference.

01530009Z

Name: 01530009Z
Brand: Littelfuse Inc.
SKU: 1361487
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	01530009Z
Manufacturer	Littelfuse Inc.
Catalog	Fuseholders
Description	FUSE HOLDER BLADE 32V 15A PCB / Fuse Holder 15 A 32V 1 Circuit Blade Through Hole
Datasheet	01530009Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Fuseholders
Mfr	Littelfuse Inc.
Series	153
Package	Bulk
Product Status	Active
Mounting Type	Through Hole
Fuse Size	0.433" L x 0.152" W (11.00mm x 3.85mm)
Current Rating (Amps)	15 A
For Use With/Related Products	Miniature (ATM)
Fuse Type	Blade
Fuseholder Type	Holder
Number of Circuits	1
Voltage	32V
Orientation	Vertical
Termination Style	PC Pin
Contact Material	Copper Alloy
Contact Finish	Tin
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.8585
Win Source Part Number	1361487-01530009Z
Ultra Librarian 3D Model	Ultra Librarian 01530009Z CAD Model

Alternative Products

Description

The 153 Fuseholder is a reliable circuit protection component from Littelfuse Inc. designed for use with Miniature (ATM) fuses.

Current Rating: 15A
Voltage Rating: 32V
Termination Style: PC Pin
Orientation: Vertical
Size: 0.433" L x 0.152" W (11.00mm x 3.85mm)
Contact Finish: Tin
Contact Material: Copper Alloy
Product Status: Active
