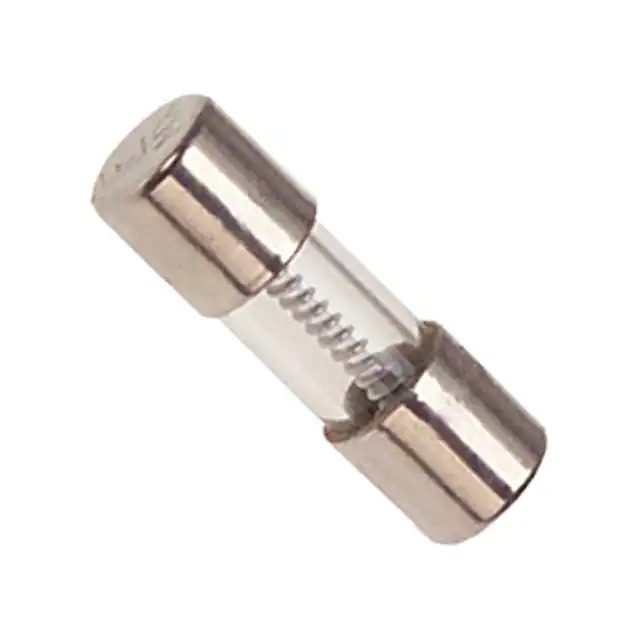

022903.5MXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

022903.5MXP

Part No 022903.5MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 3.5A 250VAC 125VDC / 3.5 A 250 V AC 125 V DC Fuse Cartridge, Glass Requires Holder 2AG, 5mm x 15mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 229
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 3.5 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2AG, 5mm x 15mm
Breaking Capacity @ Rated Voltage 100A AC, 10kA DC
Melting I²t 110
Approval Agency CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.177" Dia x 0.570" L (4.50mm x 14.48mm)
DC Cold Resistance 0.0312 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1361447-022903.5MXP
Ultra Librarian 3D Model Ultra Librarian 022903.5MXP CAD Model

Description

The 1361447-022903.5MXP is a cartridge glass fuse from Littelfuse Inc.

  • Series: 229
  • Current Rating: 3.5 A
  • Application: Circuit Protection
  • Voltage Rating: 250 V AC and 125 V DC
  • Response Time: Slow Blow
  • Breaking Capacity (AC): 100A AC @ Rated Voltage
  • Breaking Capacity (DC): 10kA DC @ Rated Voltage
  • Size: 0.177" Diameter x 0.570" Long
  • Mounting: Holder Required
  • Packaging: Bulk
  • Approvals: CE, CSA, PSE, and UL
  • DC Cold Resistance: 0.0312 Ohms
