Same model may have multiple batches, images only for reference.

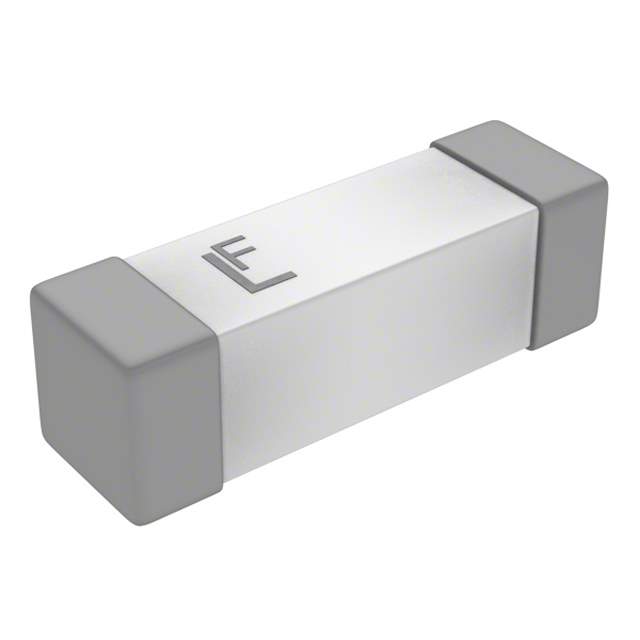

0456040.DR Real Image
Same model may have multiple batches, images only for reference.

0456040.DR

Part No 0456040.DR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description Fuse Chip 40A 72V SMD Solder Pad 12.5 X 4.45mm Ceramic T/R CSA/TUV/cULus / FUSE BOARD MOUNT 40A 60VDC 2SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 40A
Voltage Rating - DC 60V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 600A
Nominal Melting - I2t 454
Approvals cULus
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.00105 Ohm
Win Source Part Number 1000164-0456040.DR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 456
Introduction Date August 01, 2007
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 0456040.DR CAD Model

Description

The 456 series board mount fuse from Littelfuse Inc. is a fast-acting device with a current rating of 40A and a voltage rating of 60V DC.

  • Current Rating: 40A
  • Voltage Rating: 60V DC
  • Breaking Capacity: 600A @ Rated Voltage
  • Approval: cULus approved
  • Mounting: Surface mountable
  • Category: Circuit Protection
  • Nominal Melting I2t: 454
  • Nominal Cold Resistance: 0.00105 Ohm
  • Supply and Demand Status: Balanced
  • Estimated EOL Date: 2026
