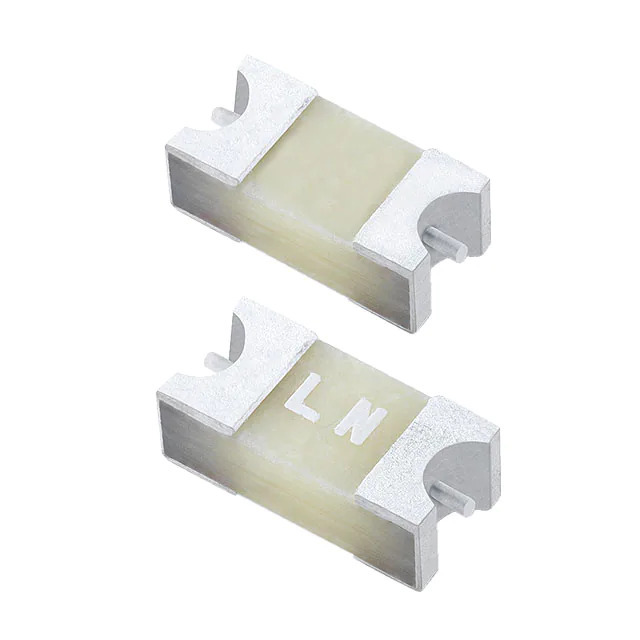

Same model may have multiple batches, images only for reference.
0470002.DRSNP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0470002.DRSNP

Part No 0470002.DRSNP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MNT 2A 125VAC/VDC 1206 / 2 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet
0470002.DRSNP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series NANO²®470
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I²t 0.75625
Approval Agency cULus, PSE
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.124" L x 0.059" W x 0.045" H (3.15mm x 1.50mm x 1.15mm)
DC Cold Resistance 0.1004 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361431-0470002.DRSNP
Ultra Librarian 3D Model Ultra Librarian 0470002.DRSNP CAD Model

Description

The NANO²®470 series surface mount fuse from Littelfuse Inc. is a compact and reliable circuit protection solution.

  • Current Rating: 2A
  • Voltage Rating: 125V AC and DC
  • Mounting Type: Board Mount
  • Response Time: Fast-Blow
  • Breaking Capacity: 50A @ rated voltage
  • Package: 1206 (3216 Metric)
  • REACH: Unaffected by REACH regulations
  • ECCN: EAR99
  • Approvals: cULus and PSE
