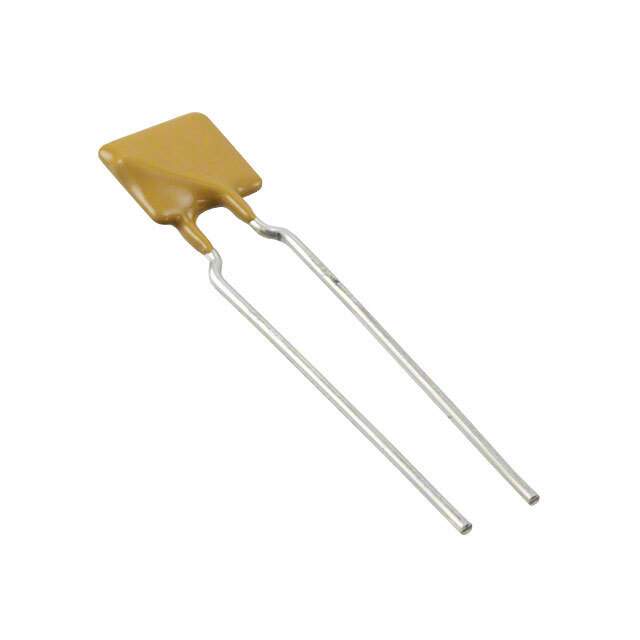

AGRF1400-2 Real Image
Same model may have multiple batches, images only for reference.

AGRF1400-2

Part No AGRF1400-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 14A HLD
Datasheet
AGRF1400-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Max) 14A
Current - Trip (It) 27.3A
Time to Trip 9s
Resistance - Initial (Ri) (Min) 2.2 mOhm
Resistance - Post Trip (R1) (Max) 6.4 mOhm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting Through Hole
Dimension 0.925" L x 0.138" W (23.50mm x 3.50mm)
Height - Seated (Max) 1.130" (28.70mm)
Lead Spacing 0.400" (10.15mm)
Win Source Part Number 116236-AGRF1400-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AGRF1400-2 CAD Model

Description

AGRF1400-2

The AGRF1400-2 is a highly efficient and robust electronic fuse designed to protect circuits from overcurrent conditions. Its reliable performance makes it a staple in safety-critical applications.

  • Applications:
    • Automotive electronics
    • Industrial automation
    • Consumer electronics
  • Features and Benefits:
    • Fast-acting response to current surges
    • Wide operating voltage range
    • Long lifespan ensuring reduced maintenance
  • Additional Details:
    • RoHS compliant
    • Compact form factor suitable for tight spaces
