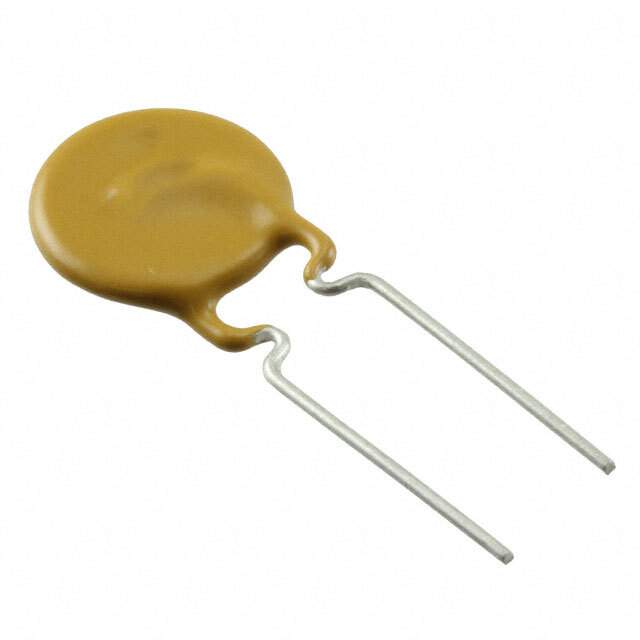

AHEF100 Real Image
Same model may have multiple batches, images only for reference.

AHEF100

Part No AHEF100
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 32V 1A RADIAL  /  Polymeric PTC Resettable Fuse 32V 1 A Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, AHEF
Package Bag
Type Polymeric
Voltage - Max 32V
Current - Max 100 A
Current - Hold (Ih) (Max) 1 A
Current - Trip (It) 1.9 A
Time to Trip 6.2 s
Resistance - Initial (Ri) (Min) 150 mOhms
Resistance - Post Trip (R1) (Max) 430 mOhms
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.382" Dia x 0.118" T (9.70mm x 3.00mm)
Height - Seated (Max) 0.535" (13.60mm)
Lead Spacing 0.199" (5.05mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.40.8070
Other Names RF1046-000,RF1046-000-ND,-1024-AHEF100,AHEF100HF,RF3356-000
Standard Package 500
Win Source Part Number 970823-AHEF100
Ultra Librarian 3D Model Ultra Librarian AHEF100 CAD Model

Description

The AHEF100 is a PTC resettable fuse manufactured by Littelfuse Inc.

  • Type: Polymeric
  • Voltage: 32V
  • Current: 100 A
  • Current Hold: 1 A
  • Current Trip: 1.9 A
  • Time to Trip: 6.2 s
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 125°C
