Same model may have multiple batches, images only for reference.

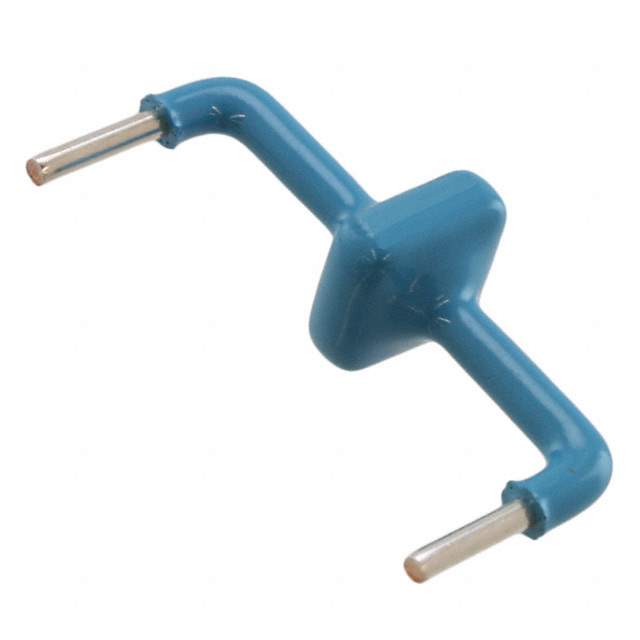

AK3-058C Real Image
Same model may have multiple batches, images only for reference.

AK3-058C

Part No AK3-058C
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 58VWM 110VC AXIAL  /  110V Clamp 3000A (3kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
Datasheet
AK3-058C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series AK3
Package Bulk
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 58V
Voltage - Breakdown (Min) 64V
Voltage - Clamping (Max) @ Ipp 110V
Current - Peak Pulse (10/1000µs) 3000A (3kA) (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 6000pF @ 10kHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Through Hole
Package / Case Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package Axial
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names -1024-AK3-058C,F4229,AK3058C
Standard Package 56
Win Source Part Number 1066603-AK3-058C
Ultra Librarian 3D Model Ultra Librarian AK3-058C CAD Model

Description

The Littelfuse Inc. 1066603-AK3-058C is a Zener diode with a voltage breakdown of 64V and a voltage reverse standoff of 58V.

  • Voltage Breakdown: 64V
  • Voltage Reverse Standoff: 58V
  • Clamping Voltage @ Ipp: 110V
  • Peak Pulse Current: 3000A
  • RoHS: Compliant
  • Mounting: Through-Hole
  • Capacitance @ 10kHz: 6000pF
  • Channel: Bidirectional
  • Temperature Range: -55°C to 125°C
  • Application: General-Purpose
  • Market Status: Open Market
  • MSL Level: Unlimited
  • Package: Axial
