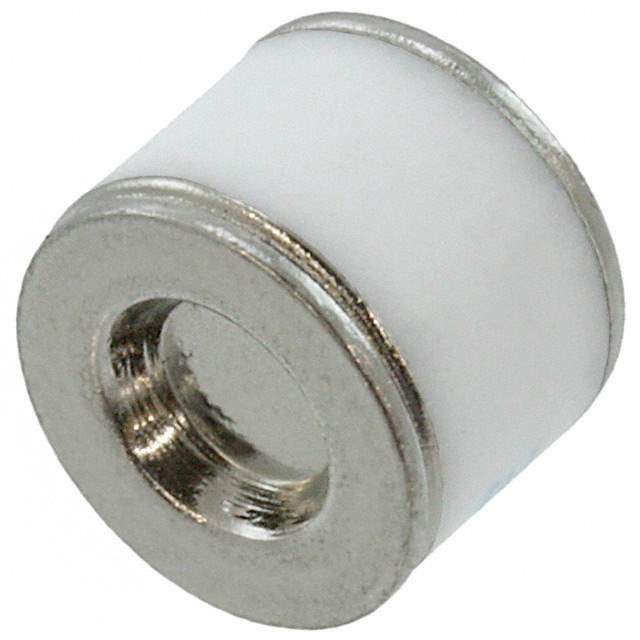

The GTCN26-101M-R05 is a Gas Discharge Tube (GDT) manufactured by Littelfuse Inc. GDTs are used as surge protection devices, protecting sensitive electronic equipment from voltage transients caused by lightning strikes, power surges, and electrostatic discharge (ESD).

Applications

• Telecommunications Equipment
• Surge Protection Devices
• Power Supplies
• Data Lines
• Signal Lines
• Outdoor Electronic Equipment

Features

• Voltage Rating: 100V
• Impulse Discharge Current: 5kA (8/20µs pulse)
• Through-Hole Mounting
• Low Capacitance
• RoHS Compliant

Benefits

• Effective Surge Protection: Protects sensitive electronic equipment from voltage transients.
• High Surge Current Capability: Can withstand high surge currents, providing robust protection.
• Low Capacitance: Minimizes signal distortion in high-frequency circuits.
• Reliable Operation: Littelfuse is a reputable manufacturer of circuit protection devices, ensuring reliable performance.
• Compact Size: Suitable for use in space-constrained applications.

Additional Details

The GTCN series from Littelfuse offers a range of GDTs for various voltage and current requirements. The GTCN26-101M-R05 is designed to protect against fast-rising voltage transients. The low capacitance is important for maintaining signal integrity in telecommunications and data line applications. It meets industry standards for surge protection and RoHS compliance, making it a suitable choice for protecting electronic equipment from overvoltage events.
