Same model may have multiple batches, images only for reference.

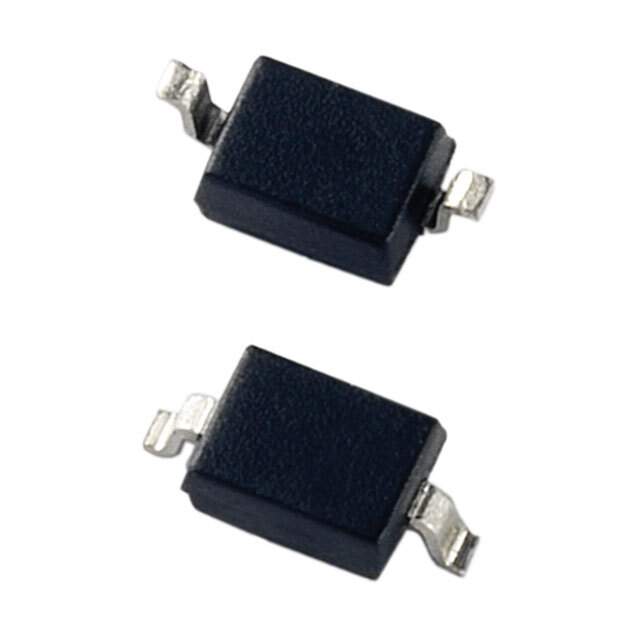

AQ4020-01FTG Real Image
Same model may have multiple batches, images only for reference.

AQ4020-01FTG

Part No AQ4020-01FTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, AQ4020, SPA®
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 3.5V
Voltage - Clamping (Max) @ Ipp 24.5V (Typ)
Current - Peak Pulse (10/1000µs) 30A (8/20µs)
Power - Peak Pulse 735W
Power Line Protection No
Applications Automotive, CAN, Ethernet, USB
Capacitance @ Frequency 2.5pF @ 1MHz
Temperature Range - Operating -40°C ~ 150°C (TA)
Mounting SMD (SMT)
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Other Names F10394TR,-AQ4020-01FTG,F10394DKR,F10394CT
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300929-AQ4020-01FTG
Ultra Librarian 3D Model Ultra Librarian AQ4020-01FTG CAD Model

Description

The Littelfuse Inc. AQ4020-01FTG is a SC-76, SOD-323 packaged surface mount TVS diode.

  • Diode Type: Zener
  • Voltage Breakdown: 3.5V
  • Voltage Clamping: 24.5V @ a peak pulse of 30A (8/20μs)
  • Power Peak Pulse Rating: 735W
  • Mounting: SMD (SMT)
  • Packaging: Tape and reel packaging
  • Applications: Automotive, CAN, Ethernet, and USB
